BX-16A – Audio Playback Module for BinloopX
Purpose-Built Embedded Design
Uncompressed WAV Audio Playback
Sample-Accurate Synchronization
16 Channels of 24-bit 48k Audio Output
64 Tracks of Polyphonic Playback
128GB Internal SSD
DSP with 9-Band Parametric EQ & Filters
16×16 Dante/AES67 Network Audio
Integrated 1.3″ Confidence Monitor

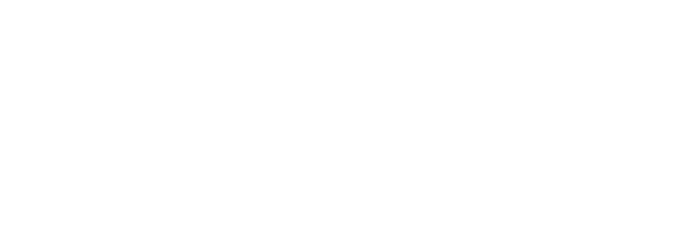

The BX-16A is an uncompressed audio playback module for the BinloopX. It provides 16-channels of audio output and up to 64-tracks of polyphonic playback, sourced from up to thousands of audio files.
The industry’s favorite synchronized A/V player has been completely re-engineered with our X-Series architecture to be the ultimate A/V platform for themed attractions. By leveraging the power of our industry-standard show control engine and the precision of our advanced SyncCore synchronization system, the BinloopX integrates perfectly with the Alcorn McBride ecosystem of products. This makes it the perfect solution to add high-quality A/V playback to any attraction.
Each BX-16A audio module provides 16 outputs of 24-bit 48kHz uncompressed audio with up to 64 tracks of audio playback that can be mixed into those outputs. The 128GB internal SSD enables ultra-reliable low-latency playback of thousands of uncompressed audio clips. 16 inputs are also available for Network Audio Bypass mode, which allows audio inputs from a production workstation to be quickly routed to the BX-16A’s outputs without re-patching the audio network. These outputs and inputs are provided on a 16×16 Dante/AES67 network audio interface with support for redundant Primary and Secondary networks.
With multiple BX-16A modules, a single BinloopX chassis can provide up to 128 outputs of 24-bit 48kHz uncompressed audio with up to 512 tracks of audio playback that can be mixed to those outputs. All playback can be scheduled and synchronized with sample-accurate precision.
Experience the ultimate in audio and video playback with Alcorn McBride’s reliability.
PART NUMBER | |
---|---|
BX-16A | BX-16A – Audio Module – 16-Channel, 64-Track Polyphonic Playback, 16×16 Dante/AES67, DSP |
AUDIO | |
Formats | WAV (Multichannel, Stereo, or Mono) |
Output Channels | 16 |
Playback Tracks | 64 (Polyphonic) |
Sample Rates | 48 kHz 44.1 kHz |
Bit Depths | 24-bit 16-bit |
Dynamic Range | >104 dB |
Network Audio | 16×16 Dante (RJ45 – Primary and Secondary) 16×16 AES67 (RJ45 – Primary and Secondary) |
DSP | 9-band Parametric EQ High-Pass, Low-Pass, Notch Filters Phase Shift, Treble Shelf, Bass Shelf |
Storage | 128GB M.2 SSD (Internal) 250+ hours of uncompressed audio content Thousands of clips |
SYNCHRONIZATION | |
Clock Accuracy | <1 uS /w <1ppB Free-run accuracy |
Reaction Time | <1 Sample (When Scheduled) |
PHYSICAL | |
Dimensions | 1.6″W x 14.9″D x 5.1″H (40mm x 378mm x 130mm) |
Weight | 2 lbs (0.9 kg) |
Power | Powered by BinloopX Chassis 16W Typ, 25W Max |
Certifications | UL Listed, CE Compliant, ROHS, WEE |
Operating Environment | 0°C (32°F) to 38°C (100°F) 0-90% Relative Humidity |
Mounting | BinloopX A/V Module Slot |
Compliance | UL, CE, CB, WEEE, RoHS |
DOCUMENTS | ||
---|---|---|
BX-16A Cut Sheet | Cut Sheet | |
BinloopX User Guide | Manual | |
SOFTWARE |
Application | Description | Download |
---|---|---|
WinScript Live 5 (Windows) | Alcorn McBride Show Control IDE for Windows | |
WinScript Live 5 (OS X) | Alcorn McBride Show Control IDE for OS X | |
AMI Terminal | Serial/Ethernet control utility for Windows |
FIRMWARE |
---|
Product | Description | Download |
---|---|---|
BinloopX | Firmware for BinloopX |
REPLACEMENT PARTS | |
---|---|

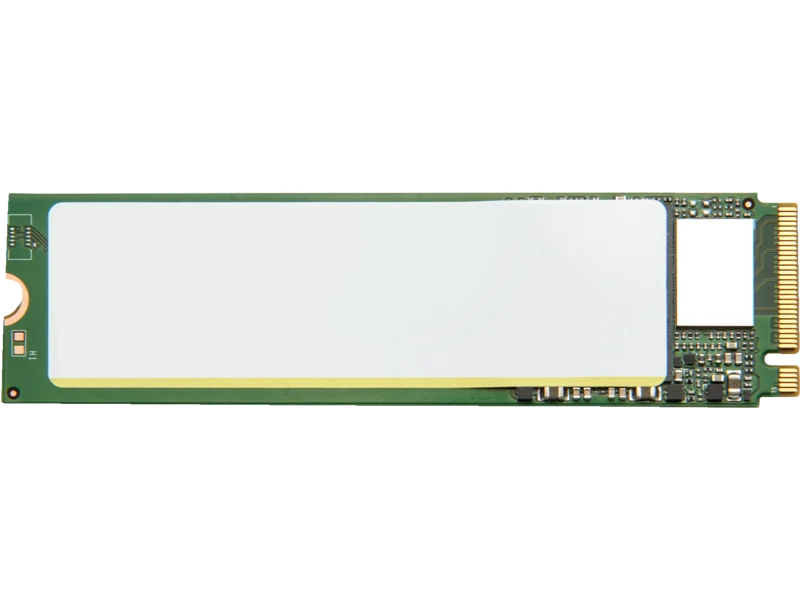

M2SSD-128GB | 128GB M.2 SSD |
