Name: V16Pro
SKU: 2346
Availability: InStock

Description

The V16Pro is uniquely designed to suit the complicated control needs and ease-of-maintenance demanded by modern attractions.

We believe that attraction designers should spend more time focusing on their vision than worrying about how to make it work. That’s why we designed the V16Pro to use a script-like approach that makes it easy to translate creativity into functional control. It’s purpose-built solid-state design ensures that the creative intent is delivered consistently throughout the life of the attraction.

The V16Pro features all of the control interfaces common with themed attractions including dual Ethernet ports, serial, MIDI, SMPTE timecode, real-time clock, discrete IO, and easy touch panel integration. It’s extensive library of devices allows you to control hundreds of devices with easy-to-understand commands like “Play” and “Power On” without dealing with complicated control protocols. The timeline feature ensures that audio, video, lighting, effects, and other common entertainment systems are precisely synchronized with each other to ensure an amazing guest experience.

The V16Pro is not a computer. It’s purpose-built design means it is capable of running your attraction with perfect consistency and absolutely no maintenance throughout the life of the attraction. It’s easy to understand why the best attractions in the world have been relying on Alcorn McBride to run their show every day for the past 30 years.

Part Number

V16PRO-S

V16Pro Controller (16 serial, 16 inputs, 16 outputs, LCD, MIDI, 2 Ethernet Ports, SMPTE LTC, SD Card)

Control

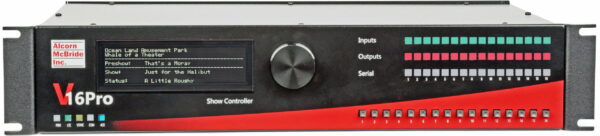

Front Panel

8×40 VFD Display
Power LED
Acknowledge (ACK) LED
Error LED
Timecode LED
Video Sync LED
16 Serial Activity LEDs (Bi-color for TX and RX)
16 Input Status LEDs
16 Output Status LEDs
16 Programmable Pushbuttons

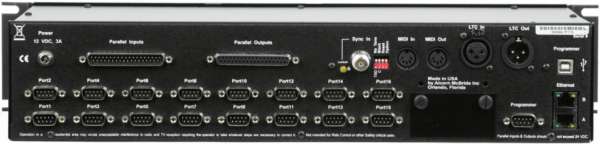

Rear Panel

Serial Programming Port DB-9M
16 Serial Ports DB-9M
MIDI Input 5-pin DIN Female
MIDI Output 5-pin DIN Female
Discrete Inputs DB-37M
Discrete Outputs DB-37F
Video Sync Input BNC (GENLOCK)
SMPTE LTC in and out XLRs (600 Ohm balanced, 1-4 V p-p)
Dual 10/100 Base-T Ethernet RJ-45
Power locking barrel connector
4 Position DIP Switch: 75 ohm Sync Termination, Sync Type, Reset, Option

Serial Ports

RS-232C or RS-422, individually software configurable
300 baud – 115.2 Kbaud
7, 8, or 9 Data Bits
1 or 2 Stop Bits
All parity types

Digital Inputs

Individually software configurable for voltages or contact closures
Input voltage range 5-24 VDC, 5 mA maximum
Hardware protected against misconfiguration
Trigger latency < 1 frame

Digital Outputs

Contact Closures limited internally to 900 mA
Self-restoring polymer fuses

Show Memory

SD Card

Real Time Clock

Internal, battery backed, synchronized by Internet time server

Ethernet

Dual 100 Base-T Ethernet ports

Physical

Size

19″W x 10.25 “D x 3.5″H (48.25 cm W x 26 cm D x 9 cm H) 2 RU

Weight

9.5 lbs. (4.3 Kg)

Operating Temperature

0°C (32°F) to 38°C (110°F), 0-90% Relative Humidity

Operating Environment

0-90% relative humidity, non-condensing

AC Adapter

100 to 250 VAC, 50 to 60 Hz, 20W maximum

Power Supply Compliance

UL, CE, CSA, WEEE, RoHS
