We believe that content creators should be able to realize the full quality of their work without sacrificing flexibility and attraction up-time. That’s why we engineered the A/V Binloop Uncompressed with the longevity of a solid-state design, stunning uncompressed quality playback, and the ability to achieve any resolution.
The A/V Binloop Uncompressed provides up to 8 channels of 2K (2048×1080) or up to 2 channels of 4K (4096×2160) high-quality uncompressed video playback. These channels can be played independently from one another, or grouped together for frame-accurate synchronous playback. The flexibility of our Binloop platform allows you to mix audio and video cards to deliver any combination of playback. It can be used as an A/V source for one show or can be easily scaled for the grandest of attractions. It can playback uncompressed frame files with a quality as high as 4:4:4 at a rate up to 120 frames-per-second and even offer deep color with support for 10-bit Rec.2020 color space.
Unlike most commercial video devices, the A/V Binloop Uncompressed provides a native resolution source to each display device and can perfectly synchronize multiple display devices. This makes it the perfect solution for video wall and blended projection applications because it eliminates the loss of quality due to stretching commonly seen in traditional video wall controllers or video processors. For large applications, it’s easy to sync multiple units using the product’s Genlock input feature.
Experience the ultimate in video playback with Alcorn McBride reliability.

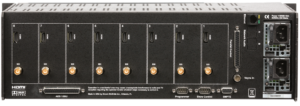

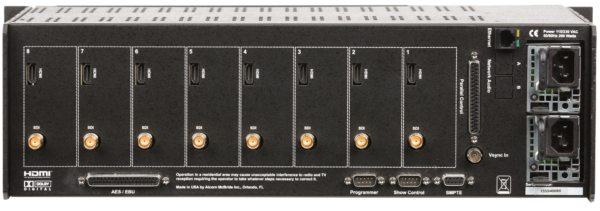

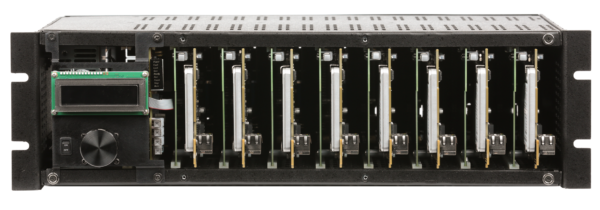

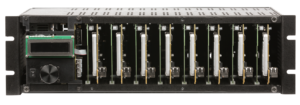

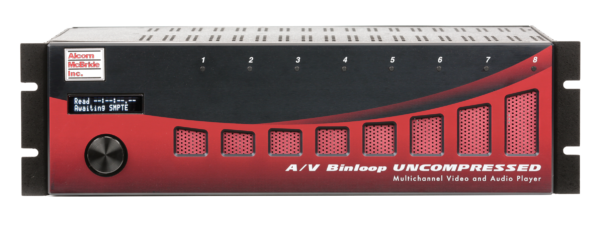

A/V Binloop Uncompressed
The bundles listed below include the A/V Binloop Uncompressed cage, DBAP5 controller card, and between 2-8 reproducer cards. SSD cards are required for each reproducer and are sold separately.
A/V Binloop Uncompressed w/ 2 REPRO2KU Cards (2 x 2K60)
A/V Binloop Uncompressed w/ 3 REPRO2KU Cards (3 x 2K60)
A/V Binloop Uncompressed w/ 4 REPRO2KU Cards (4 x 2K60 or 1 x 4K60)
A/V Binloop Uncompressed w/ 5 REPRO2KU Cards (5 x 2K60)
A/V Binloop Uncompressed w/ 6 REPRO2KU Cards (6 x 2K60)
A/V Binloop Uncompressed w/ 7 REPRO2KU Cards (7 x 2K60)
A/V Binloop Uncompressed w/ 8 REPRO2KU Cards (8 x 2K60, 2 x 4K60, or 1 x 4K120)
A/V Binloop Uncompressed Chassis /w Power Supply
DBAP5 Controller Card for A/V Binloop Uncompressed
Reproducer Card – 2K 4:4:4 Uncompressed Video w/3G-SDI and HDMI
Reproducer Card – 16-bit Uncompressed Audio
Reproducer Card – 24-bit Uncompressed Audio
CobraNet Network Audio Output Card for 8-slot Binloops
Dante/AES67 Network Audio Output Card

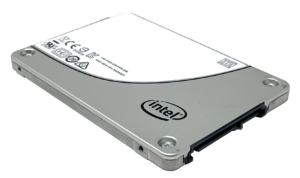

480GB High-performance SSD
800GB High-performance SSD
1200GB High-performance SSD
1600GB High-performance SSD
19″ W x 5.25″ H x 11″ D (48 cm W x 13 cm H x 28 cm D), 3RU
25 lbs. (11 Kg)
Voltage 110-240 Autosense, 350W max.
0°C (32°F) to 38°C (100°F)
0-90% relative humidity, non-condensing/20 g max vibration
Power Supply Compliance
CE, UL, SA
Video playback is provided by the REPRO2KU reproducer card. The AV Binloop Uncompressed can hold up to 8 of these reproducer cards.
Up to 8 Channels of 2K60
Up to 2 Channels of 4K60
Up to 1 Channel of 4K120
Uncompressed AMT Sequence (10-bit 4:2:2 Rec.2020)
Uncompressed AMT Sequence (10-bit 4:2:2 Rec.709)
Uncompressed AMT Sequence (8-bit 4:4:4 Rec.709)
Uncompressed Targa Sequence (8-bit 4:4:4 Rec.709)
4:2:2 10-bit Rec.2020
4:2:2 10-bit Rec.709
4:4:4 8-bit Rec.709
Solid State Drive (SSD)
REPRO16V or REPRO24D reproducer cards can be installed in the AV Binloop Uncompressed to provide audio playback capability. The product has 8 available slots for reproducer cards. Any slots not occupied by REPRO2KU cards can be used to install audio reproducers.
WAV, AIF, PCM
2 per card (up to 16 for the entire product)
REPRO16V: 44.1, 48 KHz @ 16 bit
REPRO24D: 44.1, 48, 96 KHz @ 24 bit
S/PDIF, AES – DB37F
CobraNet™ (Optional Upgrade – COBRANET 8)
Dante™ (Optional Upgrade – DANTE)
AES67 (Optional Upgrade – DANTE)
MPEG technology licensed from MPEG-LA.
Multi-channel audio formats are multiplexed as part of the audio/video bitstream, and are also output as a digital bitstream that requires an external decoder for conversion to analog signals.
OLED Display, 8 unit status LEDs; 8 channel status LEDs
Pushbuttons; Rotary encoder with push to select
Start/read SMPTE, pause SMPTE, stop, mute all; each reproducer:start/stop
RS-232 @ 9600 N,8,1, MIDI
8 Contact/voltage group triggers
(1) 100BT RJ-45, UDP, NTP, TCP (control) / (8) 100BT RJ-45
A/V Binloop Uncompressed Cut Sheet
A/V Binloop Uncompressed User Guide
Binloop Config Software
Configure and test your AV Binloop Uncompressed. Sets timecode operation, triggers and addresses.
MediaFlow is an easy to use video transcoding tool to prepare content for Alcorn McBride video products.
DBAP5 Controller Card
