The A/V Binloop HD is the ultimate frame accurate synchronized audio and video player.
Captivate your audience with content displayed across 8.3 megapixels. The A/V Binloop HD is a multi-channel video and audio player capable of playing back two channels of video with four times more resolution than full HD!
The A/V Binloop HD provides up to 8 HD channels of synchronous or asynchronous video and 16 tracks of 16-bit audio in a small form factor. It can be used as an A/V source for one show or for an entire building. It can playback MPEG2 or MPEG-4/h.264 video at bitrates up to 40 Mb per second and at resolutions up to 1920 x 1080.
The A/V Binloop HD is perfect for video wall applications. Unlike most commercial video devices, the A/V Binloop HD provides a full HD video source to each screen. This eliminates the loss of quality due to stretching commonly seen in traditional video wall controllers. For large applications, it’s easy to sync multiple units and the content can be managed via Ethernet.
True to Alcorn McBride engineering, this is a solid-state player. No hard drives, just simple removable CompactFlash storing hours of HD content. Experience Full HD quality with Alcorn McBride reliability.

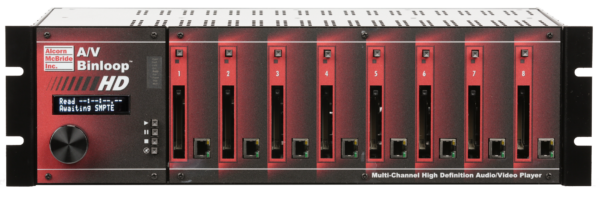

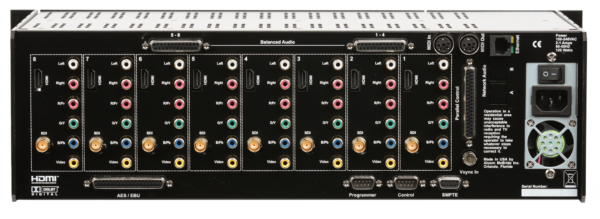

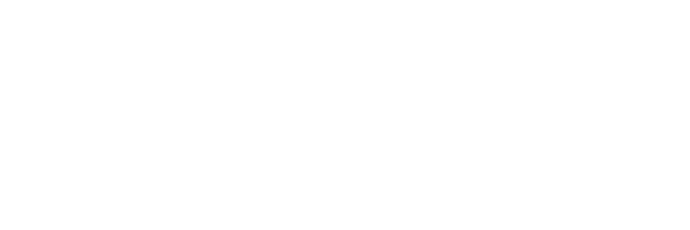

A/V Binloop HD
The bundles listed below include the AV Binloop HD cage, DBAP5 controller card, and between 2-8 reproducer cards. CompactFlash cards are required for each reproducer and are sold separately.
2 Channel A/V Binloop HD with 2 REPROHD2 Cards
3 Channel A/V Binloop HD with 3 REPROHD2 Card
4 Channel A/V Binloop HD with 4 REPROHD2 Cards
5 Channel A/V Binloop HD with 5 REPROHD2 Cards
6 Channel A/V Binloop HD with 6 REPROHD2 Cards
7 Channel A/V Binloop HD with 7 REPROHD2 Cards
8 Channel A/V Binloop HD with 8 REPROHD2 Cards

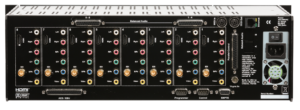

A/V Binloop HD Cage with Power Supply
Controller Card for A/V Binloop HD

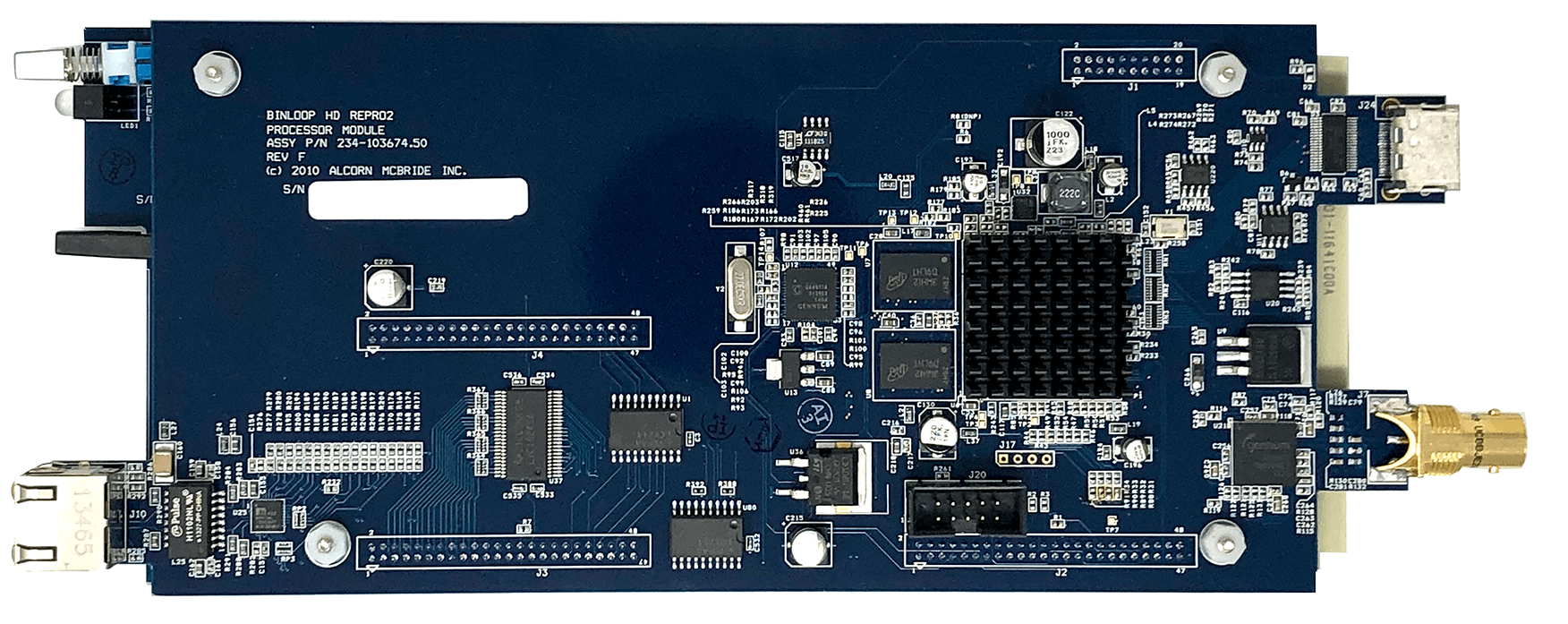

Reproducer Card – 1080p MPEG2/H264 Video Playback
CobraNet Network Audio Output Card

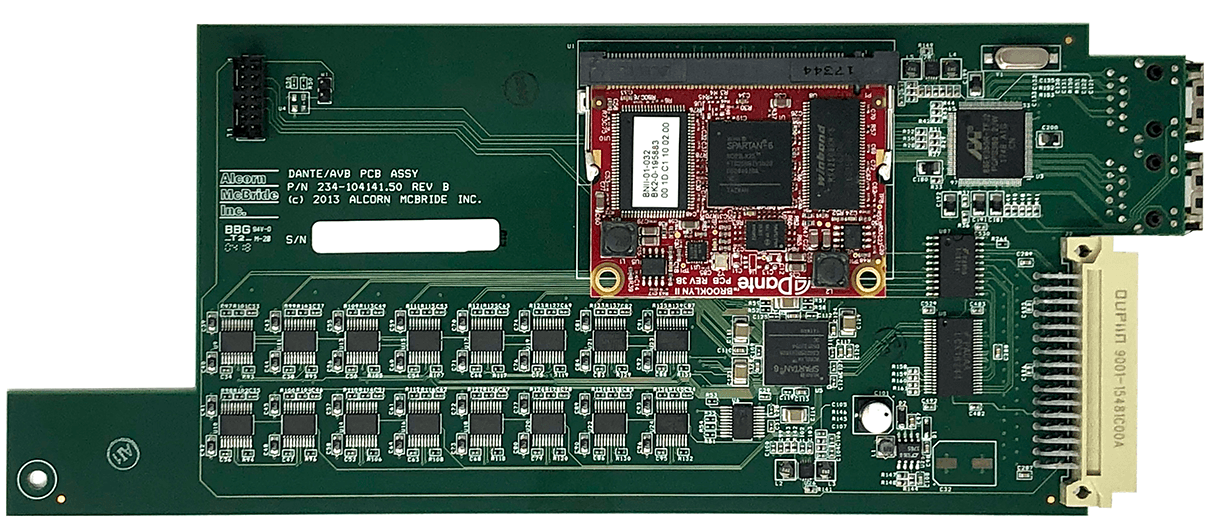

Dante/AES67 Network Audio Output Card

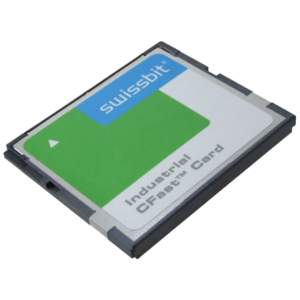

32GB CompactFlash Card
64GB CompactFlash Card
128GB CompactFlash Card
19″ W x 5.25″ H x 11″ D (48 cm W x 13 cm H x 28 cm D), 3RU
25 lbs. (11 Kg)
Voltage 110-240 Autosense, 350W max.
0°C (32°F) to 38°C (100°F)
0-90% relative humidity, non-condensing/20 g max vibration
Power Supply Compliance
CE, UL, SA
Up to 8
Microsoft VC1 MP@HL (WMV9) & AP@L3
h.264 (MPEG-4 part 10) MP & HP level 4.1
1080p, 1080i, 720p, 480p, 576p, 480i, 576i
HDMI, 3G HD-SDI (SMPTE-424M) with embedded audio
CVBS Standard definition monitor output
Simultaneous SD & HD display output
Component (YPbPr or RGsB)
MPEG-1 Layer I/II, MPEG-2 Layer II
MPEG-2 AAC, MPEG-4 AAC LC2-Channel/5.1 Channel
MPEG-4 AAC+SBR 2-Channel/5.1 Channel
Dolby® Digital EX, Pro Logic® II, MLP
2 or 5.1
32 KHz, 44.1, 48 KHz
44.1, 48 KHz, 16 bit
CobraNet™ (Option), Dante (Option), AES67 (Option)
MPEG video decoding technology licensed from MPEG-LA.
Multi-channel audio formats are multiplexed as part of the audio/video bitstream, and are also output as a digital bitstream that requires an external decoder for conversion to analog signals.
* Specifications subject to change without notice. “Dolby” and the Double D symbol are trademarks of Dolby Laboratories.
VFD, 8 unit status LEDs; 8 reproducer status LEDs
Pushbuttons; Rotary encoder with push to select
Start/read SMPTE, pause SMPTE, stop, mute all; each reproducer:start/stop
RS-232 @ 9600 N,8,1, MIDI
8 Contact/voltage group triggers
(1) 100BT RJ-45, UDP, NTP, FTP, TCP (control) / (8) 100BT RJ-45, FTP (media update)
A/V Binloop HD Cut Sheet
A/V Binloop HD User Guide
MediaFlow is an easy to use video transcoding tool to prepare content for Alcorn McBride video products.
Binloop Config Software
Configure and test your AV Binloop HD. Sets timecode operation, triggers and addresses.

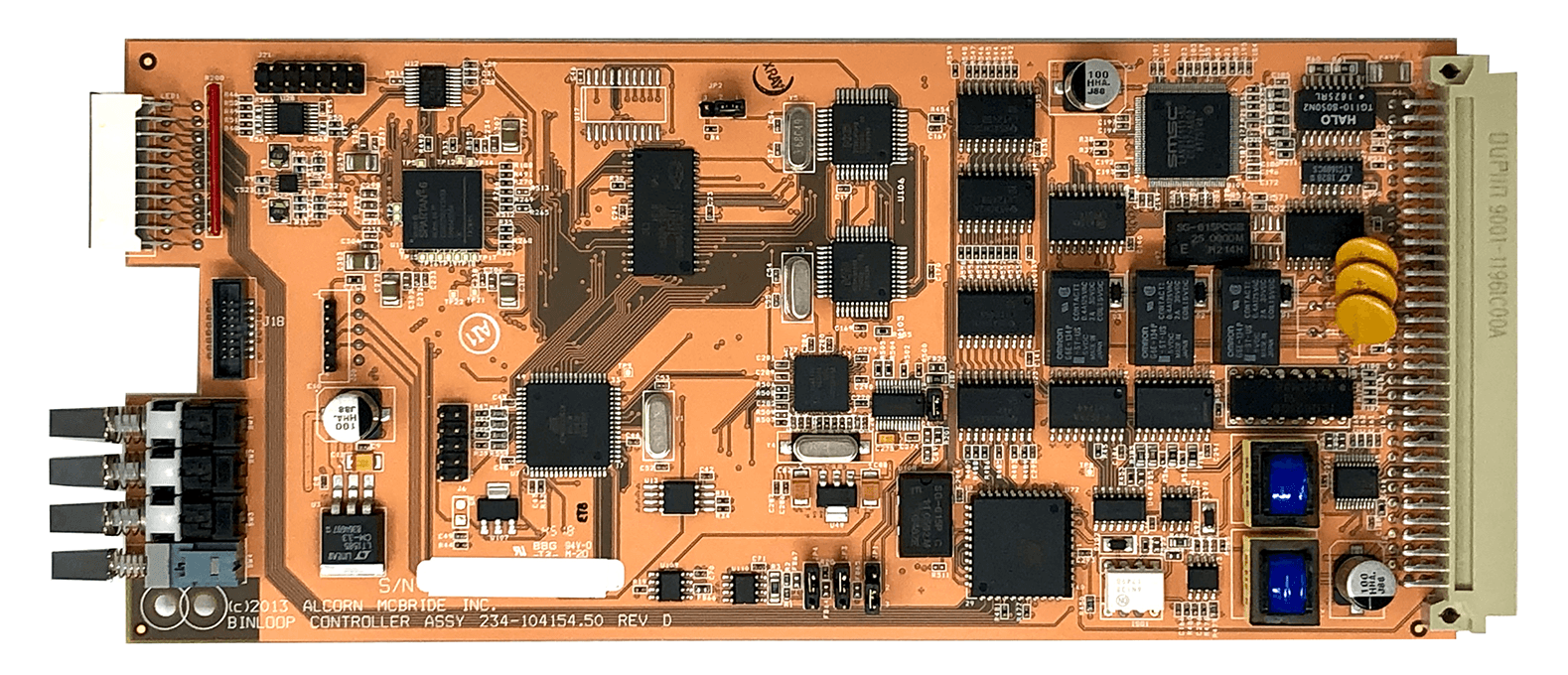

DBAP5 Controller Card
CompactFlash Adapter for USB Port

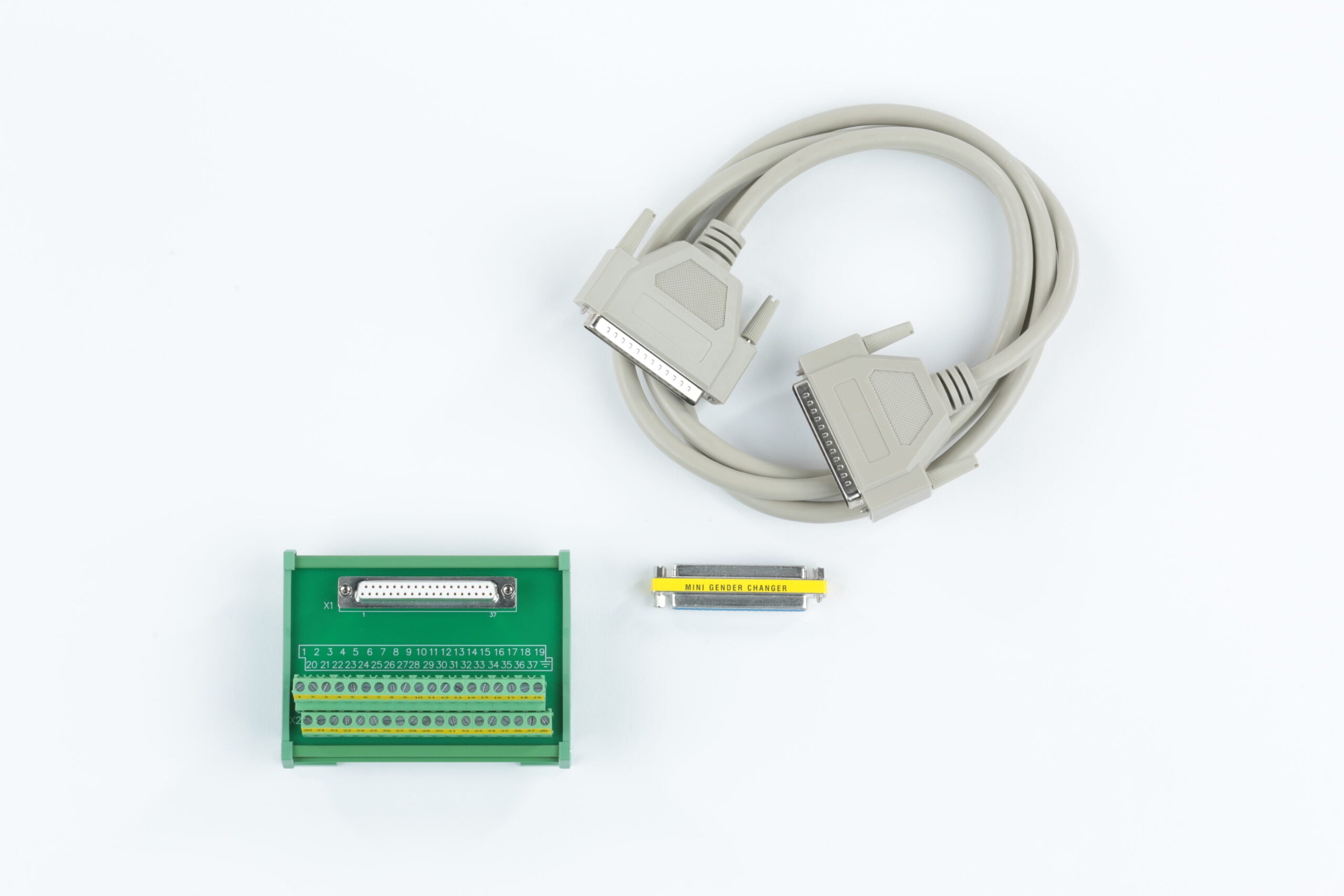

I/O Breakout box includes DB37 cable and 37-pin terminal block
19″ DIN Rail for mounting IOBB in standard equipment rack
DB-37 Solder-cup Male Connector Kit with Housing
Breakout cable for CobraNet Card (Included with CobraNet Card)
Serial Cable, 9 Pin Female to 9 Pin Female, 10 Feet
Serial Cable, 9 Pin Female to 9 Pin Female, 25 Feet
Serial Cable, 9 Pin Female to 9 Pin Female, Null Modem, 2 Feet
Serial Cable, 9 Pin Female to 9 Pin Female, Null Modem, 10 Feet
USB to RS232 Serial Adapter for Computer

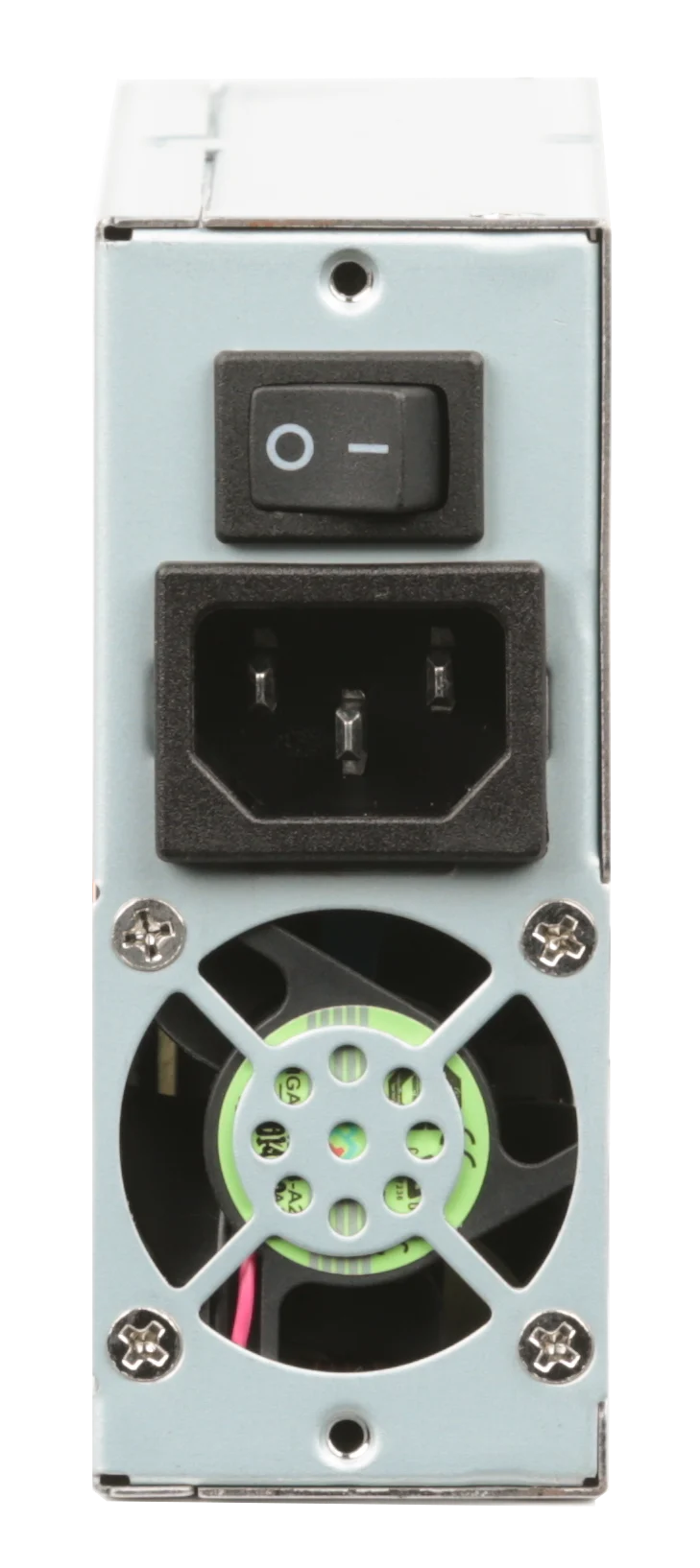

110V/220V AC Power Supply
Encoding Software for Alcorn McBride Media Players
