Description

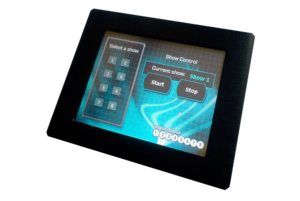

ShowTouch can control and monitor Ethernet-enabled Alcorn McBride show controllers such as the V16X. It comes preloaded with everything needed to build a graphical user interface.
Like all of our products, ShowTouch is designed to run 24/7 and with no moving parts to wear-out, it can be mounted just about anywhere while still providing a reliable and stable interface.
Configuration is easy using Touch right in WinScript Live. With just a few touches, you can set a security unlock code, upload the script running on the show controller and start designing a graphical interface with the included graphics library.
The same Touch software that runs on ShowTouch can be used on any PC running Windows and is compatible with WinScript Live! The show controller script and interface can be designed and built before ever reaching the project site.

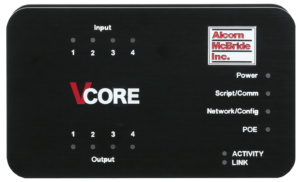

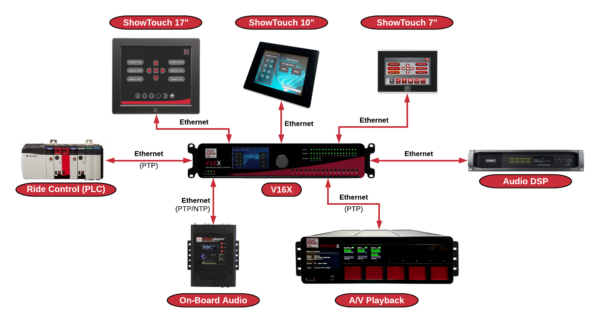

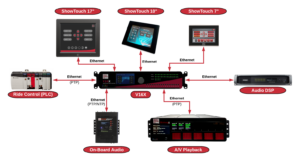

It is important to keep in mind that ShowTouch is not a stand-alone show controller. It is an accessory to our show controller product line (models V16X, V16ProS, V16Pro, V4X, V4Pro, VCoreS, VCore)
Part Numbers

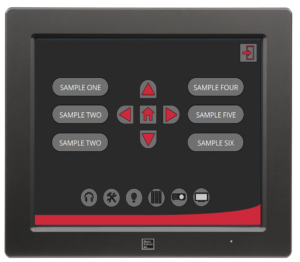

ST17

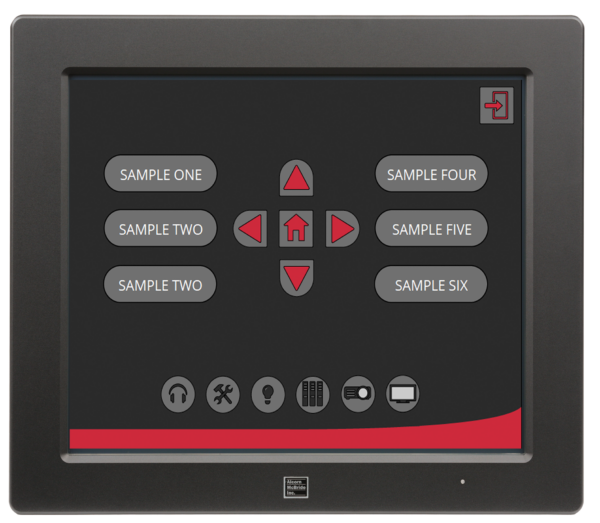

17″ Resistive Touch Panel w/ Touch Software
Display
Screen Size
17″
Screen Resolution
1280×1024
Control
10/100 Ethernet

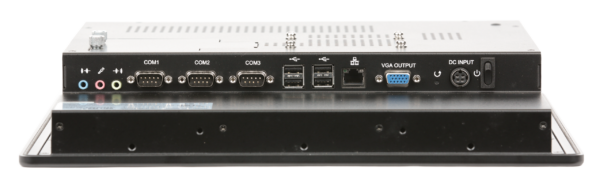

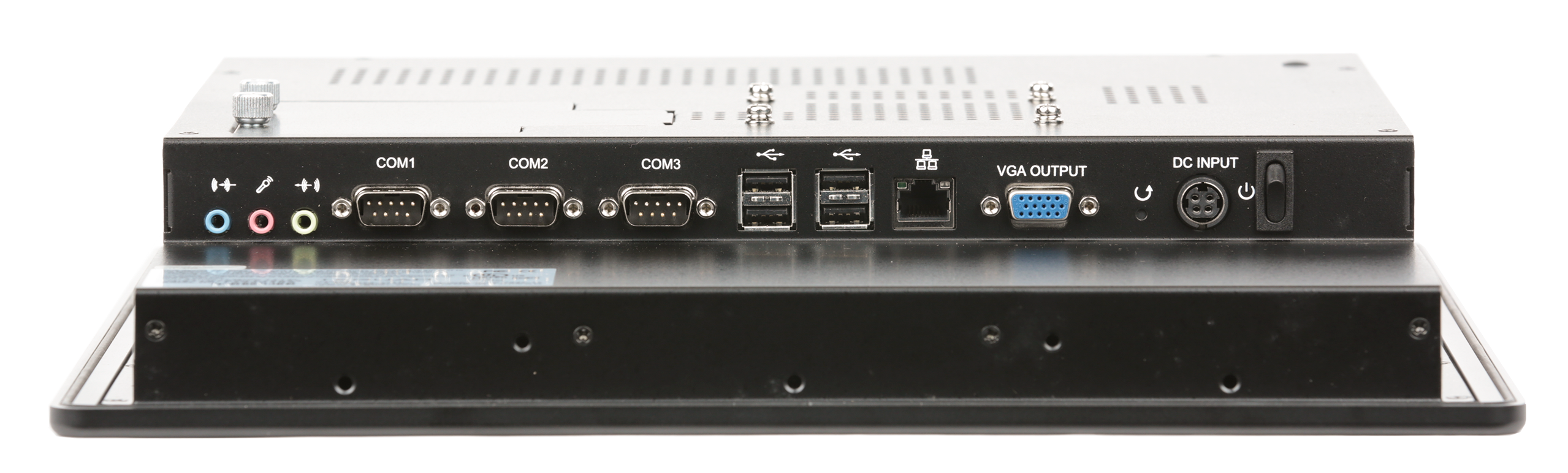

Physical
DC Input
9 ~ 36V
Screen
17″ TFT-LCD
Cooling
Passive – Fanless with Heatsink
Materials
IP66 Front in Aluminum Die-Cast Housing
Dimensions
439 x 348 x 64.8mm
Operating Temperature
0°C (32°F) to 50 °C (122°F), free air circulation
Operating Environment
10-90% relative humidity @ 40 degrees Celsius, non-condensing
Certification
CE / FCC Class A Certification
Documents
Resources
Software
| Application | Description | Download |
|---|---|---|
| WinScript Live 5 (Windows) | Alcorn McBride Show Control IDE for Windows | |
| WinScript Live 5 (OS X) | Alcorn McBride Show Control IDE for OS X |
Firmware
| Product | Description | Download |
|---|---|---|
| ShowTouch 17 | Firmware for ShowTouch 17 touch panel |
Part Number
Description

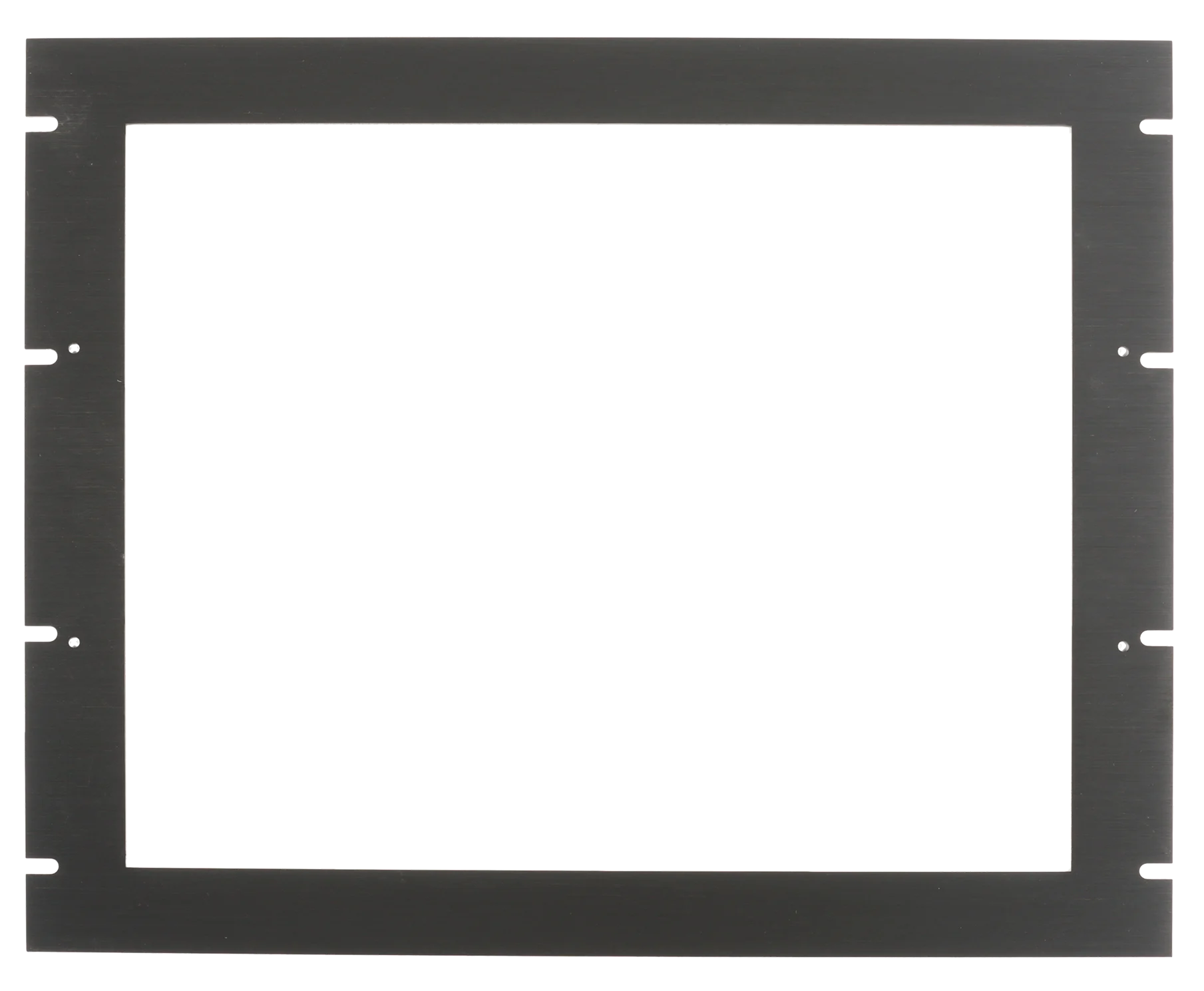

RMST17
Rack-mount kit for ShowTouch17 (9 RU)

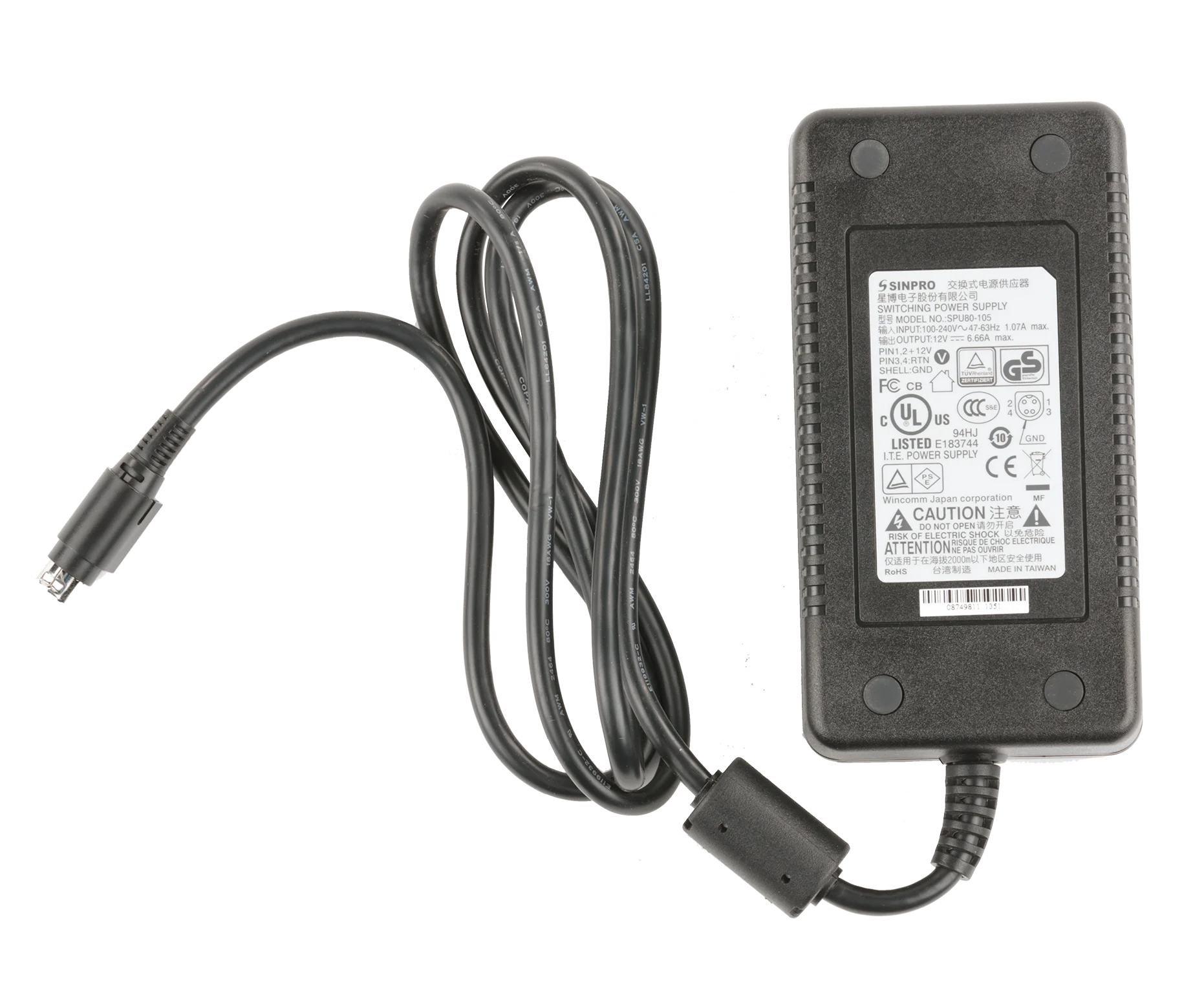

PS12VST17
12VDC Universal Power Supply for ShowTouch 17″
