Description

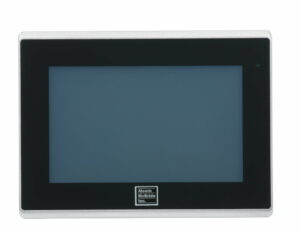

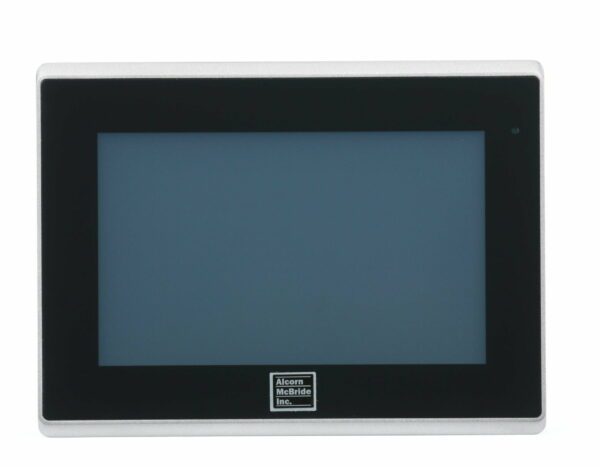

ShowTouch can control and monitor Ethernet-enabled Alcorn McBride show controllers such as the V16X. It comes preloaded with everything needed to build a graphical user interface.
Like all of our products, ShowTouch is designed to run 24/7 and with no moving parts to wear-out, it can be mounted just about anywhere while still providing a reliable and stable interface.

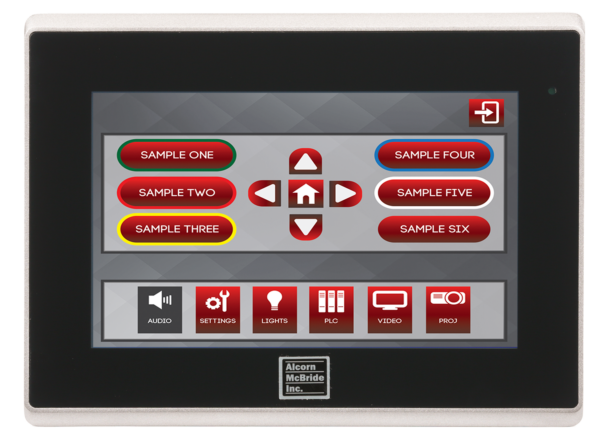

Configuration is easy using Touch right in WinScript Live. With just a few touches, you can set a security unlock code, upload the script running on the show controller and start designing a graphical interface with the included graphics library.
The same Touch software that runs on ShowTouch can be used on any PC running Windows and is compatible with WinScript Live! The show controller script and interface can be designed and built before ever reaching the project site.
It is important to keep in mind that ShowTouch is not a stand-alone show controller. It is an accessory to our show controller product line (models V16X, V16ProS, V16Pro, V4X, V4Pro, VCoreS, VCore)
Part Numbers
ST7
7″ Resistive Touch Panel w/ Touch Software
Display
Screen Size
7″
Screen Resolution
800×480
Control

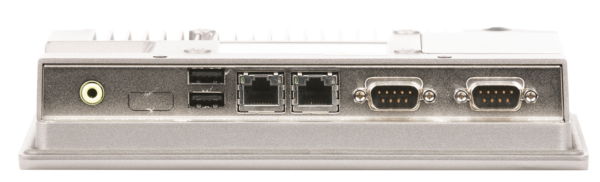

10/100 Ethernet
Physical
DC Input
9 ~ 36V
Screen
7″ TFT-LCD
Cooling
Passive – Fanless with Heatsink
Materials
IP66 Protected Front with Aluminum Housing
Dimensions
202 x 149 x 39mm
Operating Temperature
0°C (32°F) to 50 °C (122°F), free air circulation
Operating Environment
10-90% relative humidity, non-condensing
Certification
CE / FCC Class A Certification, UL 60905
Documents
ShowTouch Cut Sheet
Cut Sheet
Resources
Software
Application | Description | Download |
---|---|---|
WinScript Live 5 (Windows) | Alcorn McBride Show Control IDE for Windows | |
WinScript Live 5 (OS X) | Alcorn McBride Show Control IDE for OS X |
Firmware
Product | Description | Download |
---|---|---|
ShowTouch 7 | Firmware for ShowTouch 7 touch panel |
Part Number
Description
RMST7

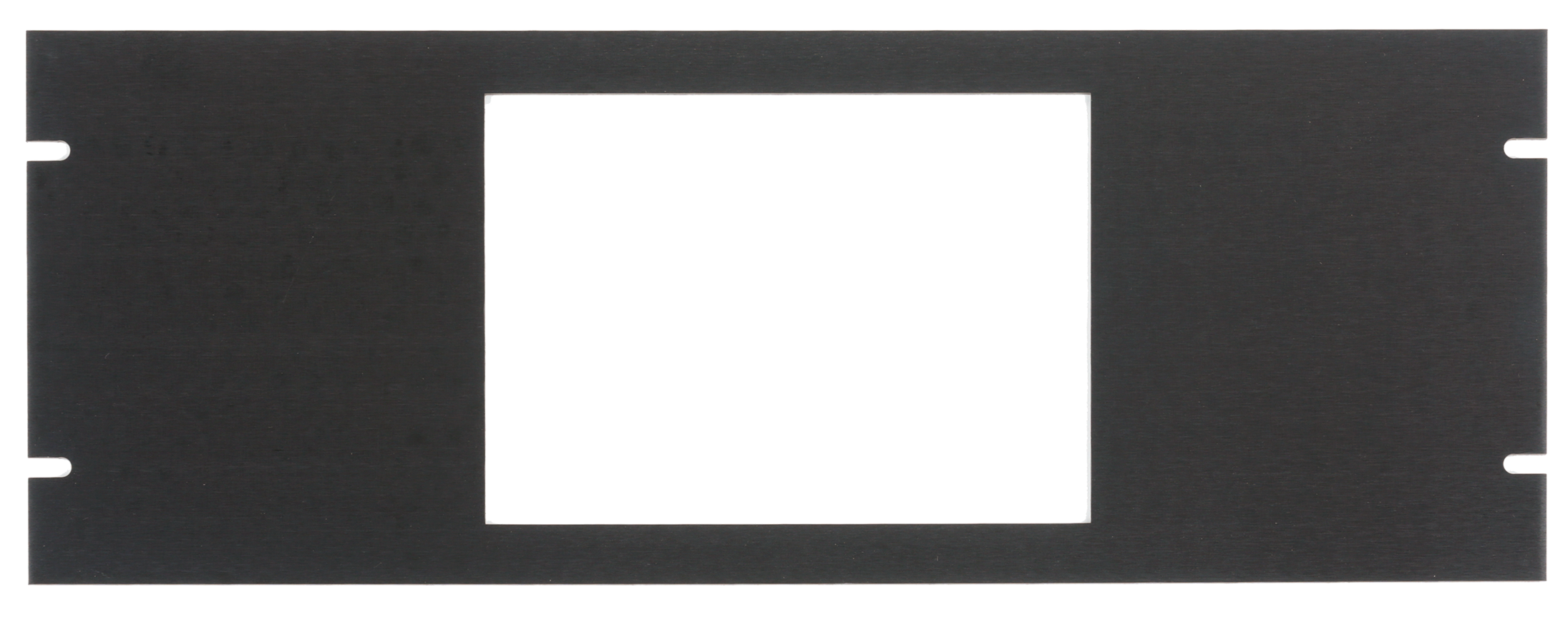

Rack-mount kit for ShowTouch7
WMST7

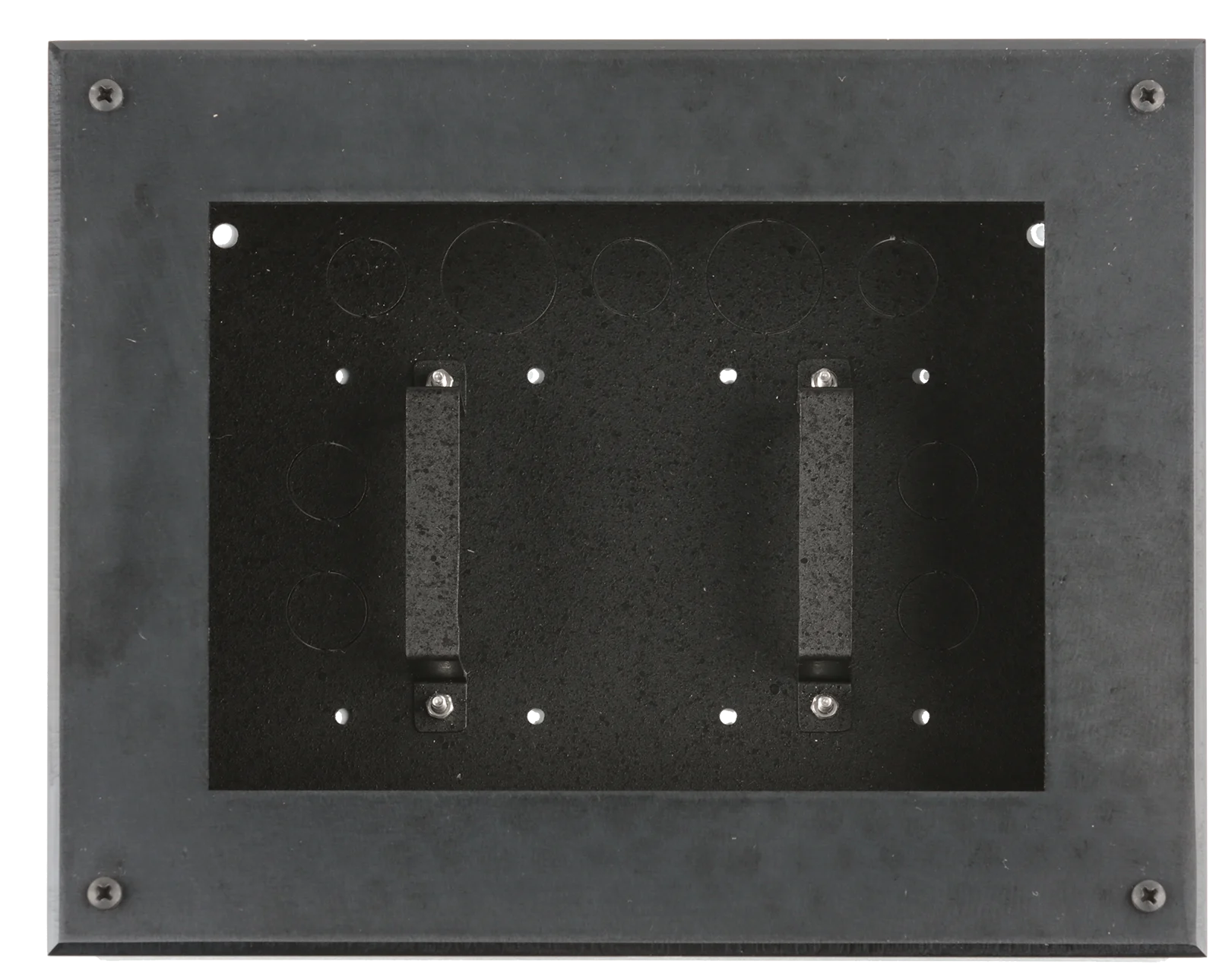

Wall Mount Box for ShowTouch 7
PS12VST7

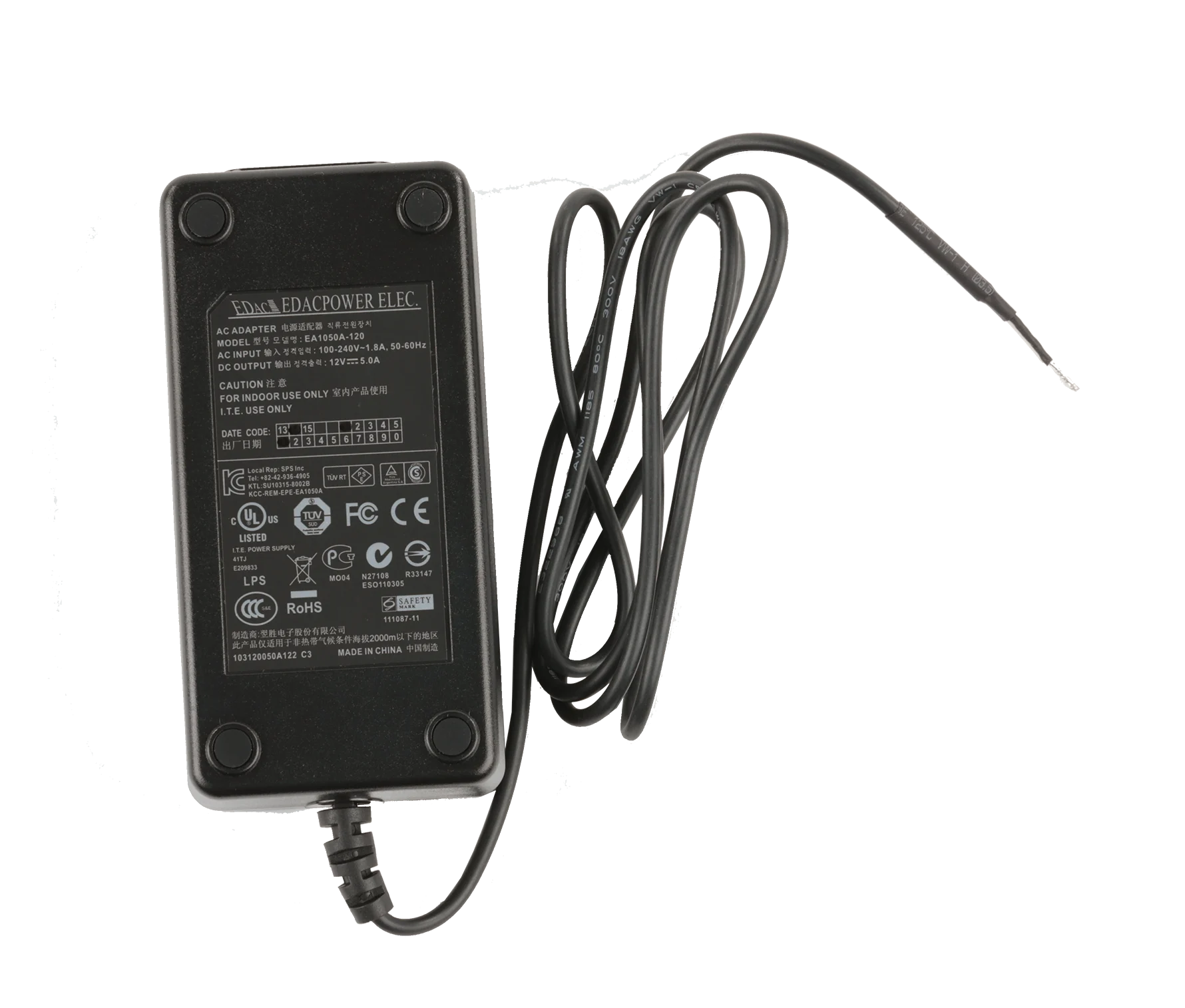

12VDC Universal Power Supply for ShowTouch 7″
