V16X

  1. Home
  2. Show Control
  3. V16X

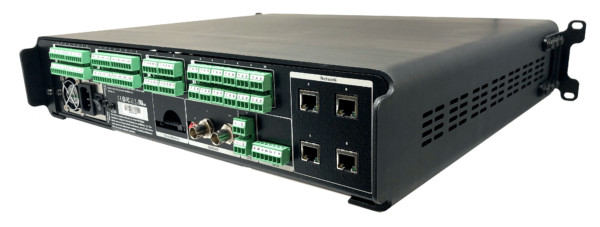

  • V16X

    Precisely Synchronized Show Controller


    Purpose-Built Embedded Design


    Seamless Control of Hundreds of Devices


    Precise Clock Sync via PTP, NTP, or GPS


    Genlock Input/Output


    SMPTE Timecode Reader/Generator


    4 Ethernet Ports


    16 Inputs/16 Outputs/16 Serial Ports


    Integrated DMX Control


    Integrated 4.3″ TFT Status Display

    View Your Quote
    Category: Show Control Tags: 8-TraXX AMI Terminal AMIO BinloopX ProTraXX PSVXAC PSVXDC ShowTouch 10" ShowTouch 17" ShowTouch 7" ShowTouch iOS WinScript Live
    • Description

    Description

    Close
    • Features
    • Specs
    • Downloads
    • Accessories

    As our top-of-the-line show controller, the V16X is uniquely suited to the complicated control needs and ease-of-maintenance demanded by themed attractions.

    We believe that attraction designers should spend more time focusing on their vision than worrying about how to make it work.  That’s why we designed the V16X to use a script-like approach that makes it easy to translate creativity into functional control.  It’s purpose-built solid-state design ensures that the creative intent is delivered consistently throughout the life of the attraction.

    This cutting-edge product features all of the interfaces commonly used within attraction systems including multiple Ethernet ports, serial, DMX, SMPTE timecode, digital IO, GPS, and a built-in LCD display.  This allows the V16X to serve as the heart of the attraction and bridge the gap between functionality and guest experience!

    The V16X incorporates a completely new synchronization core that keeps perfect time using industry-standard methods like PTP, NTP, GPS, SMPTE timecode, and Genlock.  This new technology makes this show controller the perfect device to coordinate perfect synchronization between ride control, audio, video, lighting, special effects, and all of the other entertainment systems that must work in unison to ensure top-notch show quality.

    The V16X is not a computer.  Its purpose-built design means it is capable of running your attraction with perfect consistency and absolutely no maintenance throughout the life of the attraction.  With products like this, it’s easy to understand why the best attractions in the world have been relying on Alcorn McBride to run their show every day for the past 30 years.

    Part Number


    V16X

    V16X Show Controller – 4 Ethernet, 16 Serial, 16 Inputs, 16 Outputs, DMX, 4.3″ LCD, Genlock, LTC, GPS, PTP/NTP, 100-250VAC Power

    V16X-DC

    V16X Show Controller – 4 Ethernet, 16 Serial, 16 Inputs, 16 Outputs, DMX, 4.3″ LCD, Genlock, LTC, GPS, PTP/NTP, 24VDC Power

    Control


    Show Control

    Advanced Scripted Control
    Timeline Programming
    ShowTouch Touch Panel Integration
    Intuitive Device Control (PLC, DSP, Animation, AV, etc.)

    Display

    4.3″ TFT LCD

    LED Indicators

    Power
    SMPTE Timecode (LTC)
    Sync Lock
    Live Mode
    Ethernet – Link/Activity
    Inputs
    Outputs

    Ethernet

    4 x 100/1000 BaseT Ethernet ports (RJ45)
    Isolated Networks – No internal switch/bridge
    Device Control
    Programming

    Serial

    4 x RS422/RS232 (5-pin Phoenix)
    12 x RS232 (3-pin Phoenix)

    DMX

    1 x DMX Universe (5-pin Phoenix – Port 1)

    Digital Inputs

    16 x Contact/Voltage Inputs (2 x 16-pin Phoenix)
    Software configurable for Voltage (5-24VDC) or Contact Closure

    Relay Outputs

    16 x N.O. Dry-Contact Relay Outputs (2 x 16-pin Phoenix)
    Self-Restoring Polymer Fuses (900mA)

    Show Memory

    Removable SD Card /w Captive Socket

    Synchronization


    Sync Inputs

    PTP In – IEEE1588/CIP-Sync (RJ45 – Network A or B)
    NTP In (RJ45 – Network A or B)
    GPS In (7-pin Phoenix)
    SMPTE LTC In (3-pin Phoenix)
    Genlock In – Blackburst, C-Sync, Tri-level (BNC)

    Sync Outputs

    PTP Out – IEEE1588/CIP-Sync (RJ45 – Network A or B)
    NTP Out (RJ45 – Network A or B)
    SMPTE LTC Out (3-pin Phoenix)
    Genlock Out – C-Sync (BNC)

    Frame Rates

    23.976, 24, 25, 29.97, 30, 47.952, 48, 50, 59.94, 60

    GPS Type

    NMEA-0183 /w PPS Clock Input

    Clock Accuracy

    PTP – <1uS /w <1ppB Free-run accuracy
    NTP – <1mS /w <10ppB Free-run accuracy
    GPS – <1uS /w <1ppB Free-run accuracy

    Physical


    Power

    V16X – 110-240VAC (50W Max)
    V16X-DC – 18-36VDC (3A Max)

    Size

    19″W x 14″D x 3.5″H (483mm x 356mm x 89mm)

    Weight

    14lbs (6.4kg)

    Environment

    0°C (32°F) to 38°C (110°F)
    0-90% Relative Humidity

    Mounting

    2U 19″ Rack-Mount

    Compliance

    UL, CE, CB, WEEE, RoHS

    Documents


    V16X Cut Sheet

    Cut Sheet

    V16X User’s Guide

    User’s Guide

    Mechanical


    V16X 3D Mechanical Model

    Model

    Resources


    ShowTouch Themes

    A complete listing of themes available for ShowTouch.

    Browse Themes

    Product Files

    A searchable database of product files used to control devices.

    Product Files

    Software


    Application Description Download

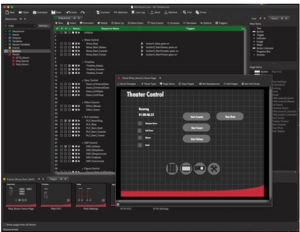

    WinScript Live 5 (Windows) Alcorn McBride Show Control IDE for Windows
    WinScript Live 5 (OS X) Alcorn McBride Show Control IDE for OS X
    AMI Terminal Serial/Ethernet control utility for Windows

    Firmware


    Product Description Download
    V16X Firmware for V16X show controller

    Touch Panels

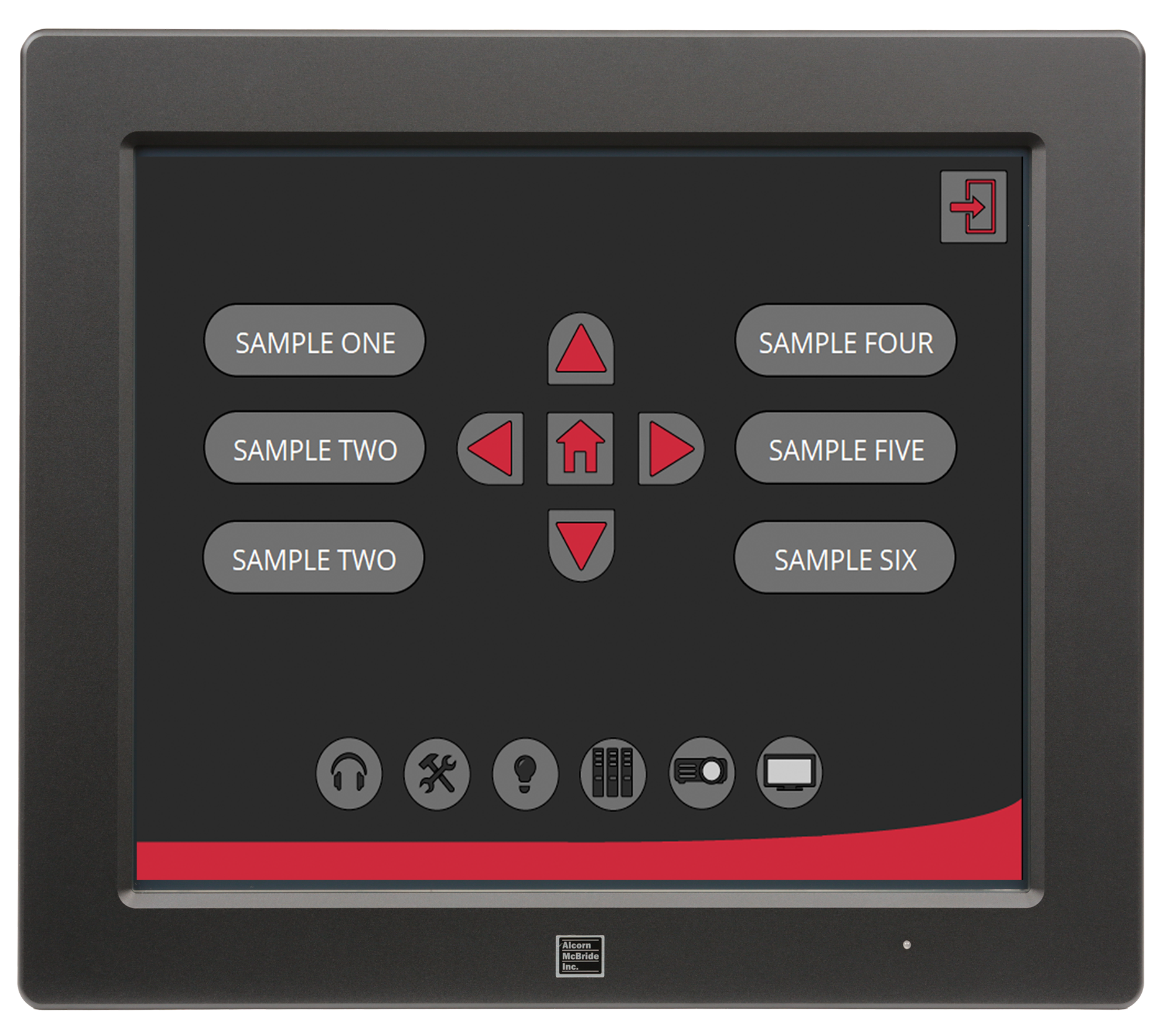

    ShowTouch 17″

    ShowTouch 17″ Touch Screen Interface

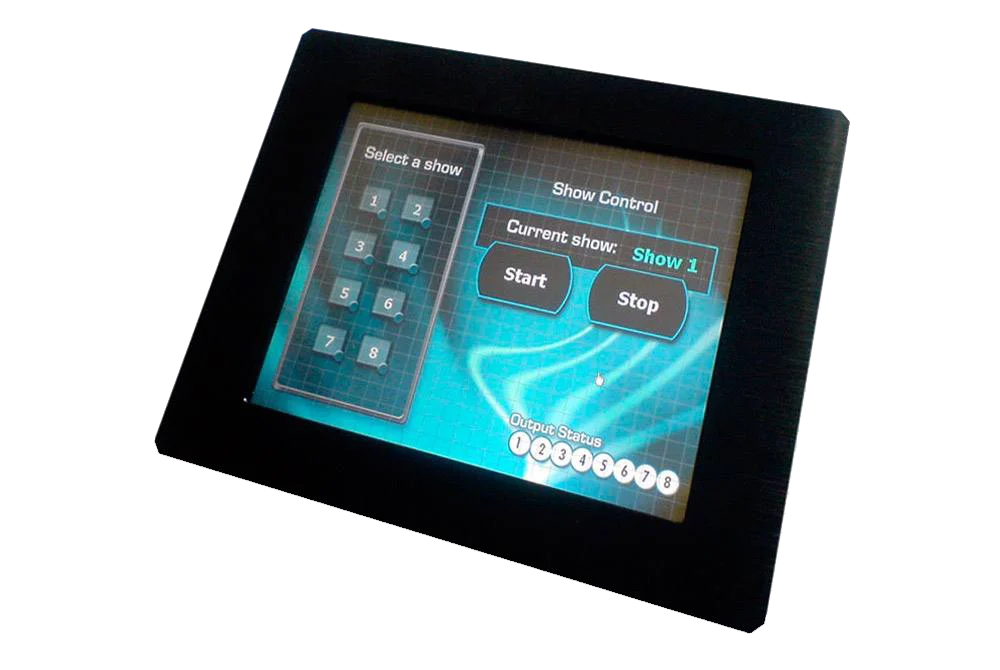

    ShowTouch 10″

    ShowTouch 10″ Touch Screen Interface

    ShowTouch 7″

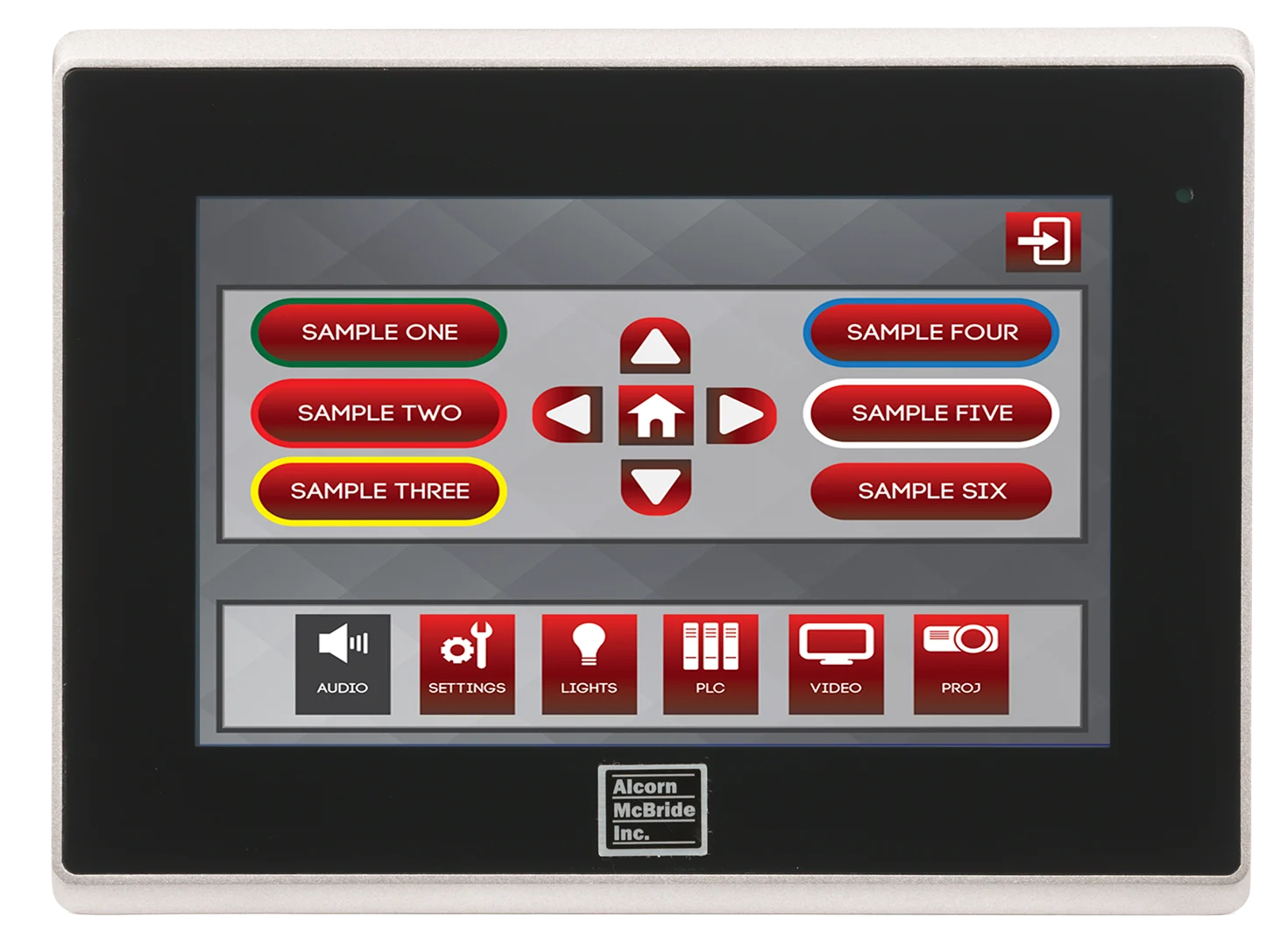

    ShowTouch 7″ Touch Screen Interface

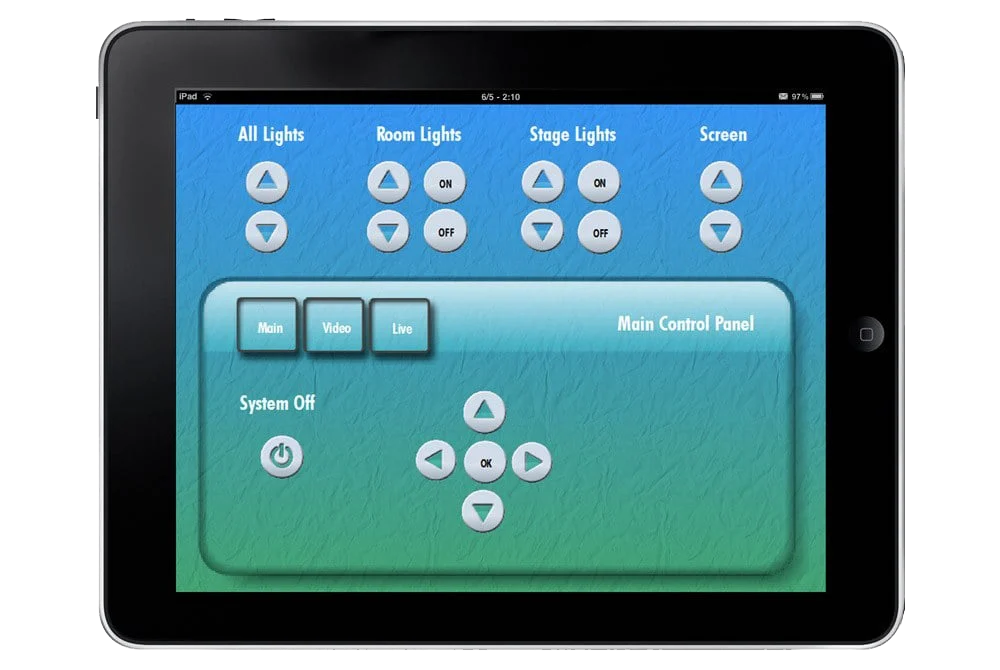

    ShowTouch iOS

    ShowTouch Touch Screen Interface App for iOS Devices

    IO Expansion

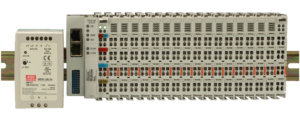

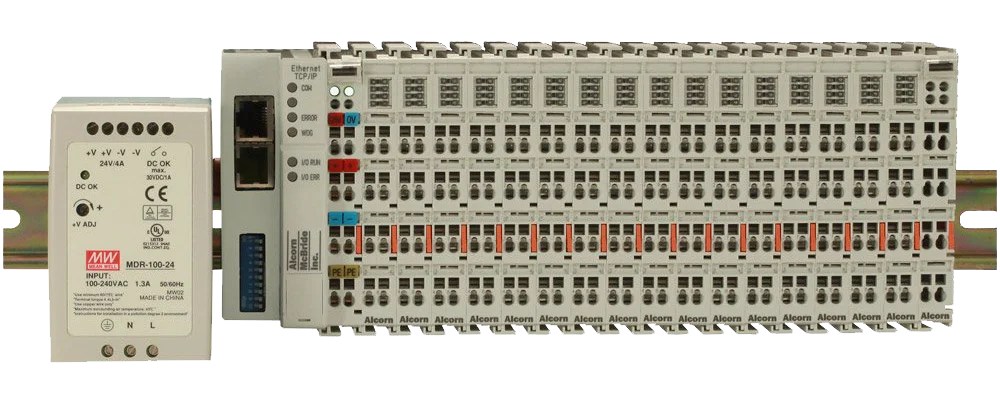

    AMIO-64

    32x 24VDC Inputs, 32x 24VDC Outputs

    AMIO-32

    16x 24VDC Inputs, 16x 24VDC Outputs

    AMIO-16

    8x 24VDC Inputs, 8x 24VDC Outputs

    AMIO-8IN

    8x 24VDC Inputs

    AMIO-8OUT

    8x 24VDC Outputs

    Replacement Parts


    PSVXAC

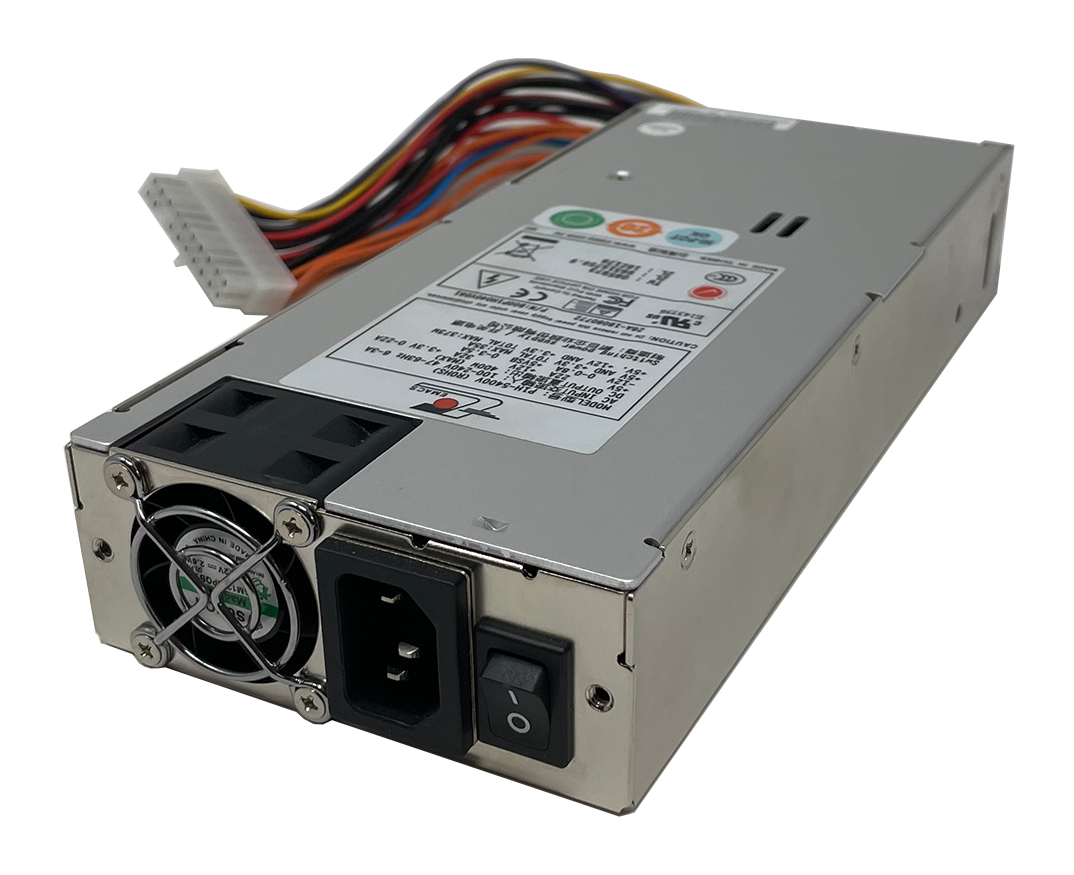

    110-220VAC Universal Power Supply Module (V4X)

    PSVXDC

    24VDC Universal Power Supply Module (V4X-DC)
