BX-4KU – Video Playback Module for BinloopX

Purpose-Built Embedded Design

Single Channel of 4K/UHD or Four Channels of 2K/HD

Up to 60fps 4:4:4 10-bit Uncompressed DPX Video

Rec.709 or Rec.2020

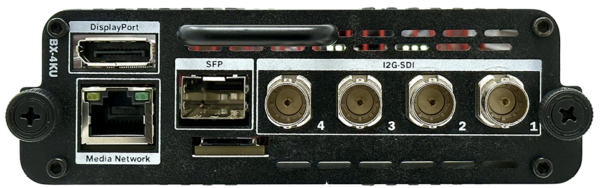

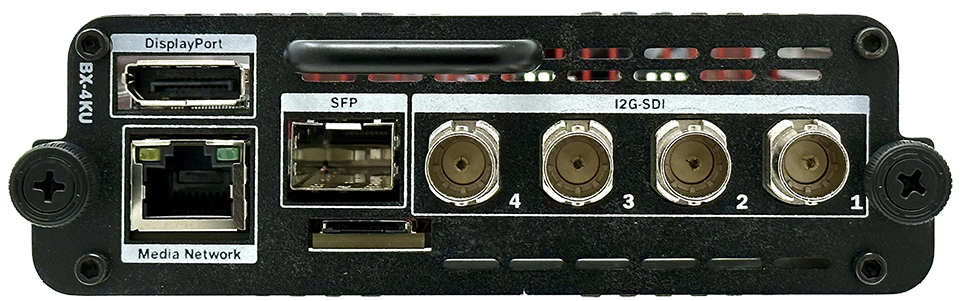

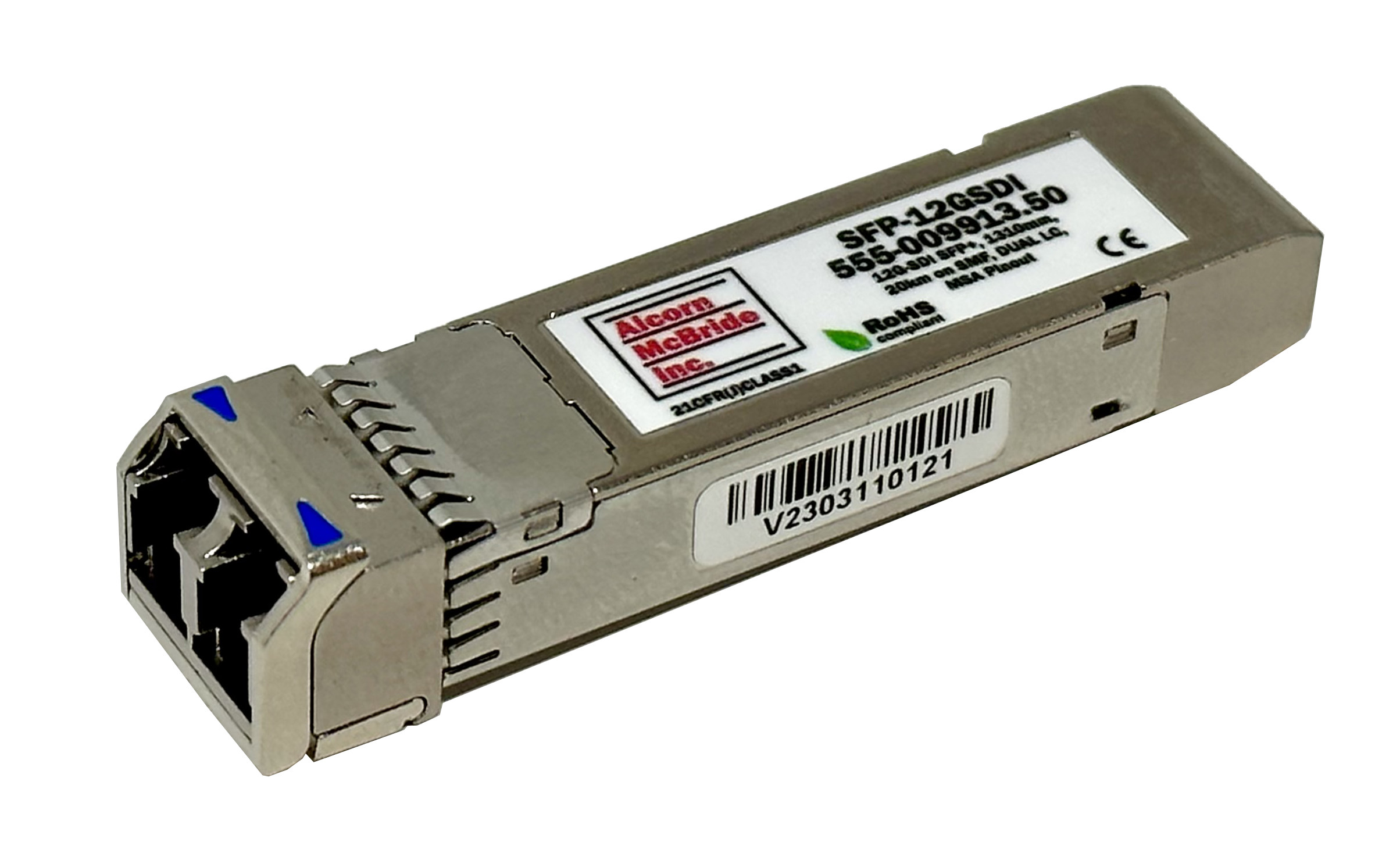

12G-SDI, 12G-SDI SFP, and DisplayPort

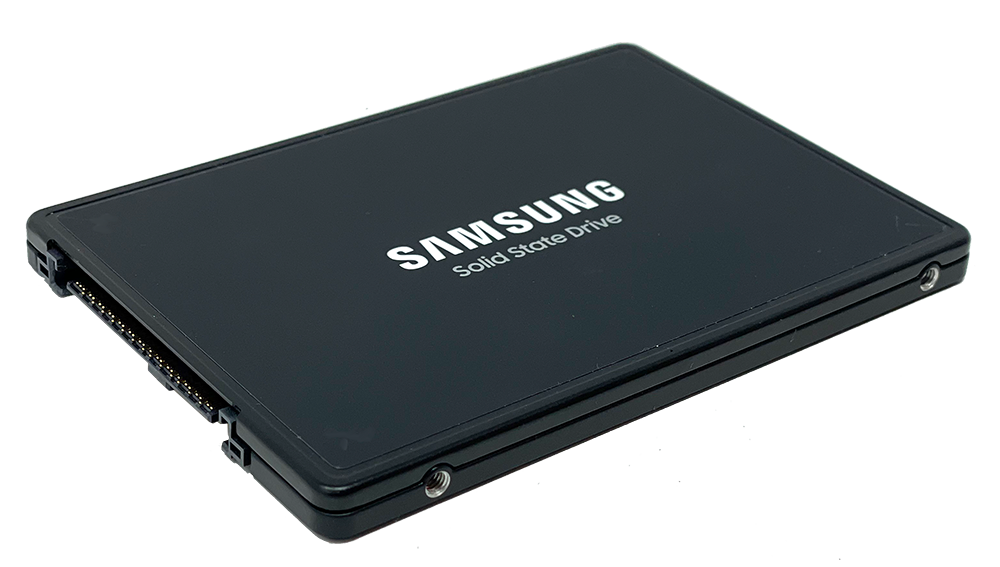

U.2 High-Performance Solid State Media

Integrated 1.3″ Confidence Monitor

Remote Content Update via Ethernet

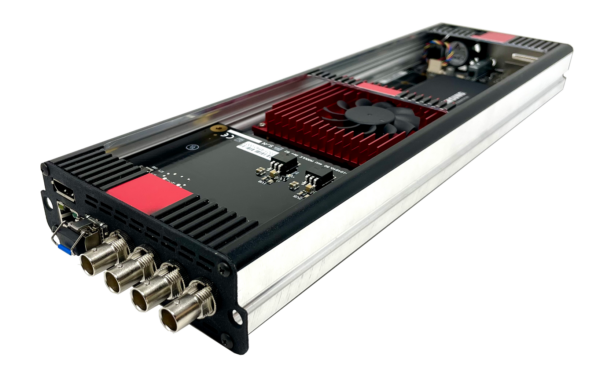

The BX-4KU is a Video Playback module for the BinloopX.  Each module provides a single 4K/UHD output, or up to four channels of 2K/HD outputs.

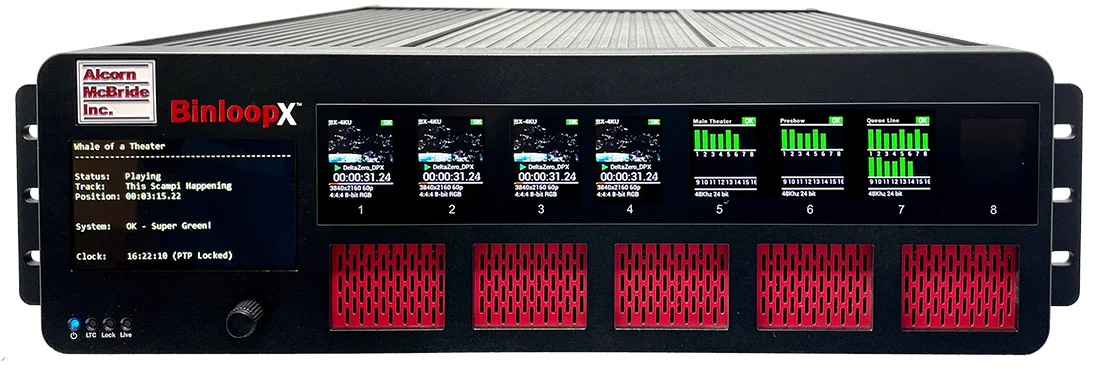

The industry’s favorite synchronized A/V player has been completely re-engineered with our X-Series architecture to be the ultimate A/V platform for themed attractions. By leveraging the power of our industry-standard show control engine and the precision of our advanced SyncCore synchronization system, the BinloopX integrates perfectly with the Alcorn McBride ecosystem of products. This makes it the perfect solution to add high-quality A/V playback to any attraction.

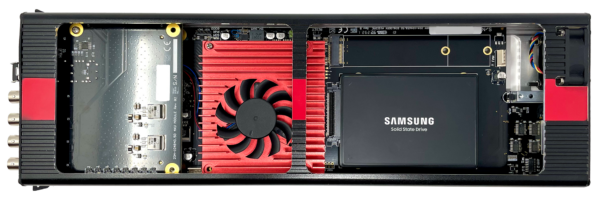

Each BX-4KU video module provides either a single channel of 4K/UHD playback at up to 60fps, or up to four channels of 2K/HD playback. The removable internal SSD enables ultra-reliable low-latency playback of high-quality uncompressed DPX image sequences.

With multiple BX-4KU modules, a single BinloopX chassis can provide up to 4 channels of 4K120, 8 channels of 4K60, or 32 channels of 2K/HD.  All playback can be scheduled and synchronized with sample-accurate precision.

Experience the ultimate in audio and video playback with Alcorn McBride’s reliability.

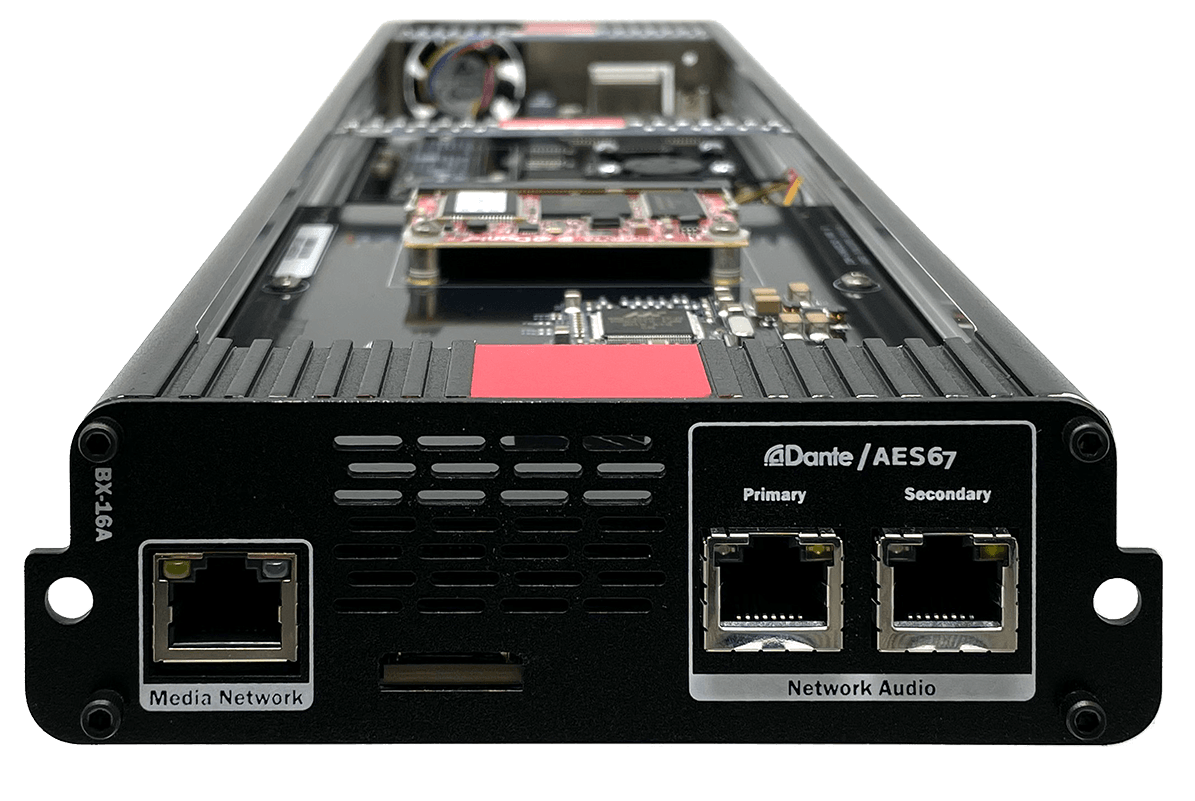

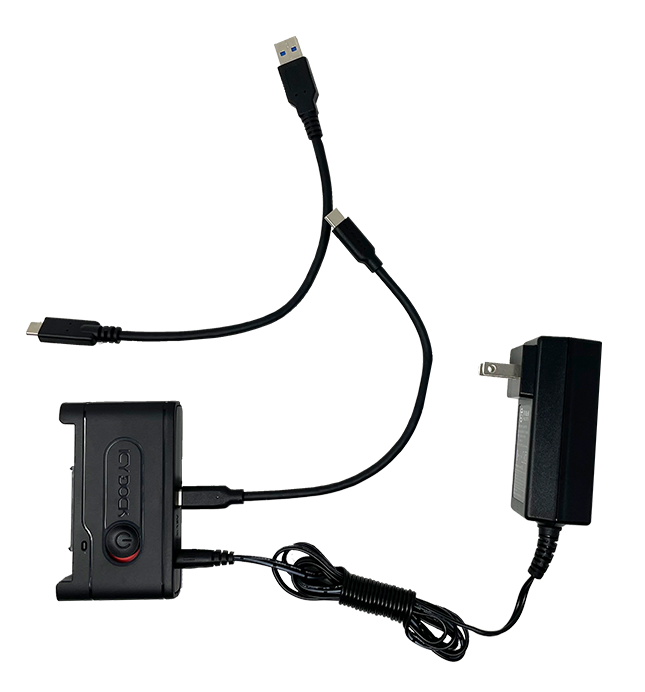

Companion Products
