Description

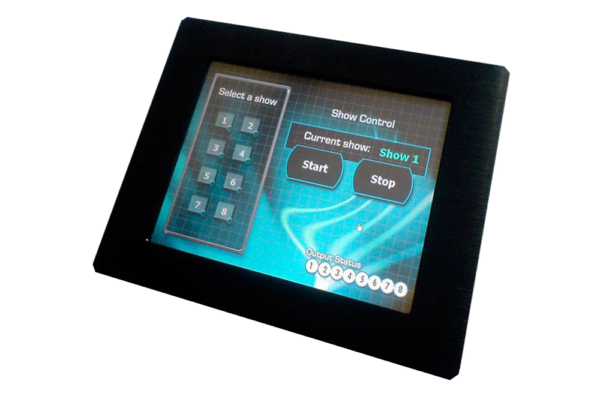

ShowTouch can control and monitor Ethernet-enabled Alcorn McBride show controllers such as the V16 Pro. It comes preloaded with everything needed to build a graphical user interface.
Like all of our products, ShowTouch is designed to run 24/7 and with no moving parts to wear-out, it can be mounted just about anywhere while still providing a reliable and stable interface.
Configuration is easy using Touch right in WinScript Live. With just a few touches, you can set a security unlock code, upload the script running on the show controller and start designing a graphical interface with the included graphics library.
The same Touch software that runs on ShowTouch can be used on any Windows PC and is compatible with WinScript Live! The show controller script and interface can be designed and built before ever reaching the project site.
ShowTouch can be used in any size installation. Design options are fully customizable making this interface as unique as your project.
Part Numbers
SHOWTOUCH10
10.4″ Resistive Touch Panel w/ Touch Software
(larger sizes also available for special order)
System
Memory
4GB Compact Flash
(larger sizes and/or hard drive also available for special order)
Screen Resolution
800×600
(larger sizes also available for special order)
Control
10/100 Ethernet
Physical
Power Supply
12VDC 5A Max (60W Max)
Screen
10.4″ TFT
(larger sizes also available for special order)
Cooling
Fanless design with integrated heatsink
Materials
All metal with black aluminum front panel

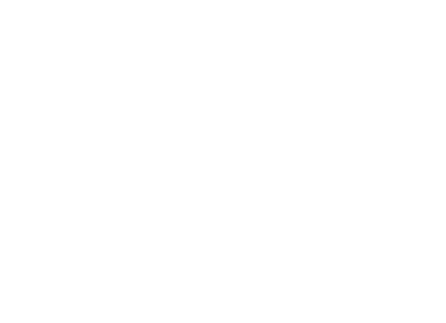

Size
11.5″W x 8.9″H x 2.17 “D (29.2 cm W x 22.6 cm H x 5.504 cm D)
Operating Temperature
0°C (32°F) to 45 °C (113°F), free air circulation
Operating Environment
0-90% relative humidity, non-condensing
Power Supply Compliance
UL, CE, CSA, WEEE, RoHS
Docs
Description
Download
Software
Description
Download
Touch
The graphical interface software that runs on our Show Touch will also run on any Windows PC, and it’s free! Touch is available as part of WinScriptLive.
These tools help you access the advanced features of your product. Visit our Software page for more selections.
Part Number
Description
RMST10
Rack-mount kit for ShowTouch10 (6 RU)
DSST10
Desktop Stand for ShowTouch 10
WMST10
Wall Mount Box for ShowTouch 10
SWST10
Swivel/Tilt/Rotate Wall Mount Kit for ShowTouch 10
STMTHW
ShowTouch Mounting Hardware Parts
PS12VST10
12 Volt Universal Power Supply 110V/220V
