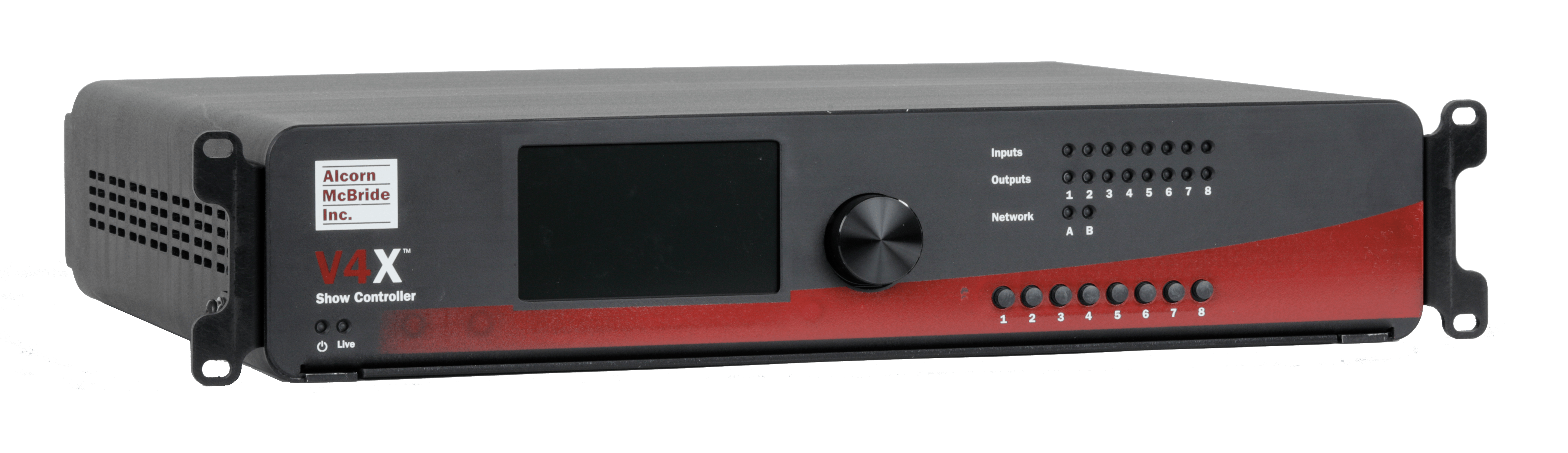

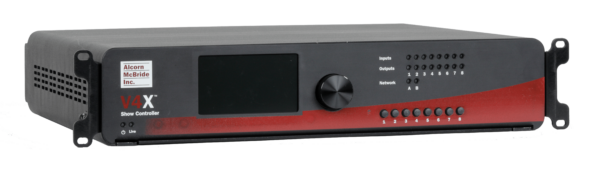

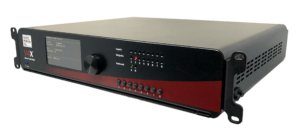

Description
The V4X leverages the power and flexibility of our next-generation show control core to deliver a perfect solution for everyday show control applications.
This product includes many of the core features that demanded by attraction systems, including multiple Ethernet ports, serial, digital I/O, and a built-in touch panel display. This makes the V4X an ideal solution to control medium-sized attractions or show control sub-systems.
For applications that do not require the advance external synchronization features delivered by the SyncCore technology within the V16X, the V4X offers the same advanced show control features in a more economical package. It provides seamless integration with common devices such as PLCs, DSP cores, display devices, motion control systems, and A/V components.
The V4X is not a computer. Its purpose-built design means it is capable of running your attraction with perfect consistency and absolutely no maintenance throughout the life of the attraction. With products like this, it’s easy to understand why the best attractions in the world have been relying on Alcorn McBride to run their show every day for the past 30 years.
Product Information
Product
V4X
Part Number
V4X
V4X Show Controller – 2 Ethernet, 4 Serial, 8 Inputs, 8 Outputs, 4.3″ LCD, 100-250VAC Power
V4X-DC
V4X Show Controller – 2 Ethernet, 4 Serial, 8 Inputs, 8 Outputs, 4.3″ LCD, 24VDC Power
Control
Show Control
Advanced Scripting Control
Timeline Programming
Control of Devices (PLC, DSP, Animation, AV, etc.)

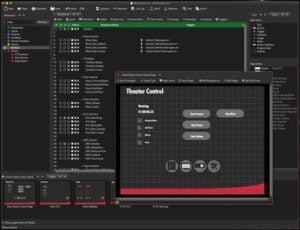

ShowTouch Touch Panel Integration

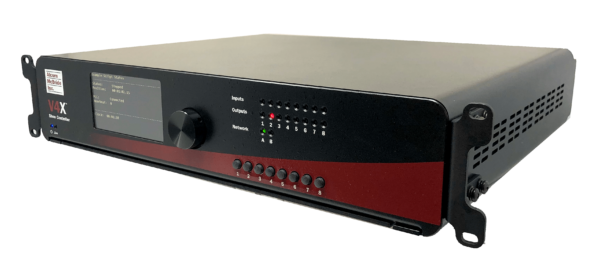

Display
4.3″ Touch-enabled TFT LCD
LED Indicators
Power
Live Mode
Ethernet – Link/Activity
Inputs
Outputs

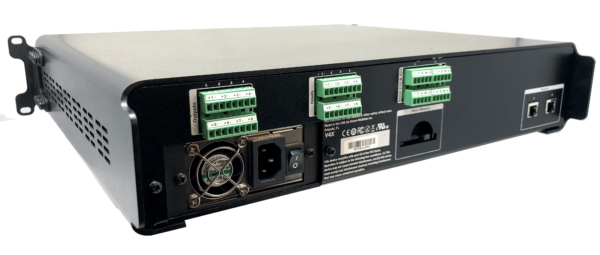

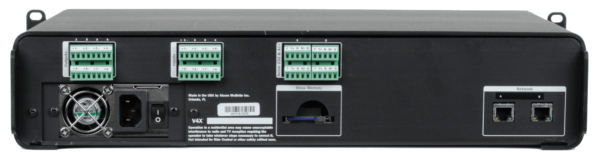

Ethernet
2 x 10/100/1000BT Ethernet ports (RJ45)
Isolated Networks – No internal switch/bridge
Device Control
Programming
Serial
4 x RS422/RS232 (5-pin Phoenix)
Digital Inputs
8 x Contact/Voltage Inputs (1 x 16-pin Phoenix)
Software configurable for voltages or contact closures
Input voltage range 5-24 VDC, 5 mA maximum
Trigger latency < 1 frame (17ms)
Relay Outputs
8 x N.O. Dry-Contact Relay Outputs (1 x 16-pin Phoenix)
Self-restoring polymer fuses (900mA)
Show Memory
Removable SD Card
Sync Inputs
PTP In – IEEE1588/CIP-Sync (Ethernet – RJ45)
NTP In (Ethernet – RJ45)
GPS In (7-pin Phoenix)
SMPTE LTC In (3-pin Phoenix)
Genlock In – Blackburst, C-Sync, Tri-level (BNC)

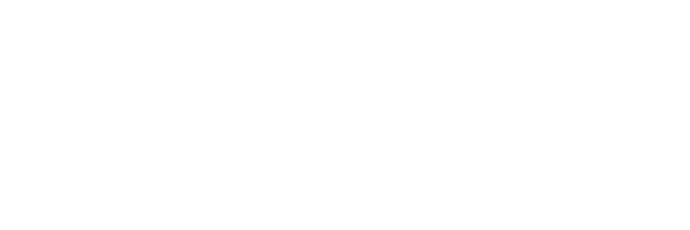

Physical
Size
19″W x 11″D x 3.5″H
Weight
9.5 lbs. (4.3 Kg)
Power
100 to 250 VAC, 50 to 60 Hz, 50W maximum
Operating Temperature
0°C (32°F) to 38°C (110°F), 0-90% Relative Humidity
Mounting
2U Rack-Mount
Docs
Description
Download
Docs
Description
Download
Software
Description
Download
WinScript Live!
Our powerful scripting language for designing, testing and downloading your V16 Pro.
AMI Terminal
Send serial or ethernet commands to Alcorn McBride products. Good for controlling hardware and troubleshooting.
These tools help you access the advanced features of your product. Visit our Software page for more selections.
Firmware
Product
Download
Alcorn McBride provides the latest firmware for your product at no charge. To learn how to check your firmware version and upgrade it, visit our Firmware page.
Part Number
Description
CETHN
Spare Peer-to-Peer Ethernet Null Cable
IOBB
I/O Breakout box includes CP-37 Pin Cable and 37 Pin terminal block
DIN19
DIN Rail for mounting IOBB in standard equipment rack
KDB37M
DB-37 Male Solder-cup Connector Kit with Housing
KDB37F
DB-37 Female Solder-cup Connector Kit with Housing
CP37
37 Pin Cable, for controller IO ports
DBWP-10
Serial Cable, 9 Pin Female to 9 Pin Female, 10 Feet
DBWP-25
Serial Cable, 9 Pin Female to 9 Pin Female, 25 Feet
CNU-2
Serial Cable, 9 Pin Female to 9 Pin Female, Null Modem, 2 Feet
CNU-10
Serial Cable, 9 Pin Female to 9 Pin Female, Null Modem, 10 Feet
USBSER
USB to RS232 Serial Adapter for Computer
PS12VU
Spare Universal Power Supply 12V
