Intelligent 16-Zone Paging Station Kit
We believe that paging solutions should be a breeze to install and intuitive to operate. That’s why we designed V-Page to leverage the flexibility of industry-standard DSP platforms like Q-SYS and provide a simple button-based UI that just makes sense.

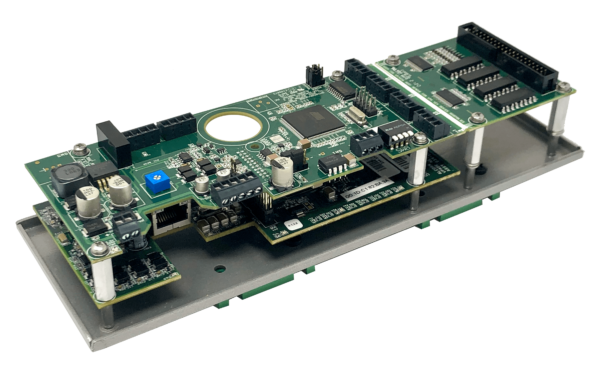

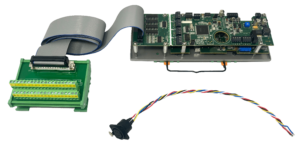

The VP16K is a paging station kit that allows you to create customized paging consoles with up to 16-zones of control. This kit is designed to mount on a standard DIN rail inside the console and comes with a panel-mount 5-pin XLR harness to interface to a microphone. The included IOBB interface allows the station to connect to up to 16-buttons and indicator LEDs.
PART NUMBER |
|
|---|---|
| VPAGE-VP16K | V-Page 16-zone intelligent paging station kit /w IOBB (Microphone not included) |
CONTROL |
|
| Controls | 16 Contact-Closure Button Inputs Microphone Gain |
| Indicators | 16 Lamp Driver Outputs |
|
Config Switches |
Link Firmware Update/Factory Defaults |
| Network Connectors | Female RJ-45 SFP |
| Protocols | UDP, TCP, HTTP, Dante, AES67 |
AUDIO |
|
| Microphone Connector | Phoenix Screw Terminal Block 1844249 Panel-Mount Female 5-Pin XLR Harness (Included) |
| Microphone Type | Balanced or Dynamic Microphone (Not Included) PTT Supported |
| THD+N | <0.07% |
| Signal-to-Noise Ratio | >85 dB |
| Input Impedance | >30Mohm |
| Frequency Response | 20-20kHz +/- 1% |
| Network Audio Interface | 0x1 Dante 0x1 AES67 |
| DSP Compatibility | Q-SYS Core 110f (AES67 Only) Q-SYS Core 250i (AES67 or Dante via CDN64 I/O Card) Q-SYS Core 500i (AES67 or Dante via CDN64 I/O Card) Q-SYS Core 510i (AES67 or Dante via CDN64 I/O Card) Q-SYS Core 1100 (AES67 or Dante via CDN64 I/O Card) Q-SYS Core 3100 (AES67 or Dante via CDN64 I/O Card) Q-SYS Core 5200 (AES67 Only) |
PHYSICAL |
|
| Power (PoE) | PoE Class 3 RJ45 |
| Power (DC) | 5-37VDC @ 1A Max Phoenix Screw Terminal Block 1844210 |
| Dimensions |
9″W x 2.75″H x 2″D (229mm x 70mm x 51mm) |
| Weight | 1.5lb (.7kg) |
| Environment | 0°C (32°F) to 38°C (100°F) 0-90% Relative Humidity |
| Compliance | WEEE, RoHS |
DOCUMENTS |
||
|---|---|---|
| V-Page VP16K Cut Sheet | Cut Sheet | |
| V-Page VP16K User’s Guide | Manual | |
MECHANICAL |
||
| V-Page VP16K Mechanical 3D Model (STEP) | Model | |
| V-Page VP16K 2D Drawing (PDF) | Drawing | |
| V-Page VP16K 2D Drawing (DWG) | Drawing | |
| V-Page VP16K panel cutout template (DWG) | Drawing | |
SOFTWARE |
||
| Product | Description | Download |
|---|---|---|
| V-Page + V-Com Utilites | Configuration and Test Utility for V-Page and V-Com units |
FIRMWARE & PLUGIN |
|---|
If you’re using an older version of Q-Sys, be sure to download a release that is compatible with that platform:
|
| Product | Description | Download |
|---|---|---|
| V-Page | Firmware and Plugin for V-Page stations |
MOUNTING |
|
|---|---|
| DIN-19 | 19″ DIN-Rail |
PARTS |
|
| MIC-US600EL | Electro-Voice US600EL Microphone /w 5-pin XLR Connector |
| IOBB |

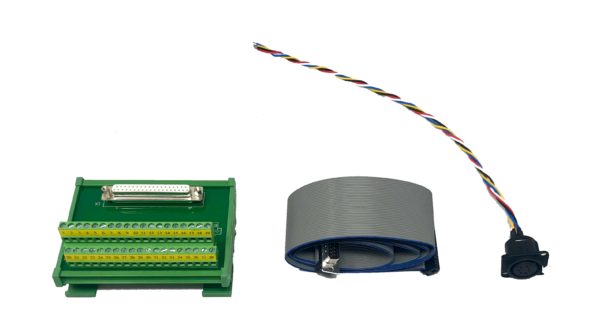

I/O Breakout Box. Includes 6ft DB37 Cable and 37-contact terminal block |
