Single Channel HD Video Playback with Sync and SDI

3G HD-SDI

GPS Triggered

1080p, 1080i, 720p

Over 100 Hours of Playback

Playlisting and Scheduling

Ethernet for Remote Updating

The Digital Video Machine HD offers flexible playback options with superb video quality. Rugged and compact, it’s the perfect choice for the most demanding applications.

The Digital Video Machine HD is the ultimate high-definition single-channel video player. It provides the highest-quality video in an extremely compact and very reliable form.

It plays from CompactFlash so there are no moving parts to break and with its Ethernet connection. With a variety of control options – Ethernet, RS-232, playlists, real-time scheduler, GPS-triggers – and outputs – composite, component, HD-SDI – the Digital Video Machine HD is the perfect HD video playback source for any application.

PRODUCT INFORMATION
Product	Digital Video Machine HD
MODEL

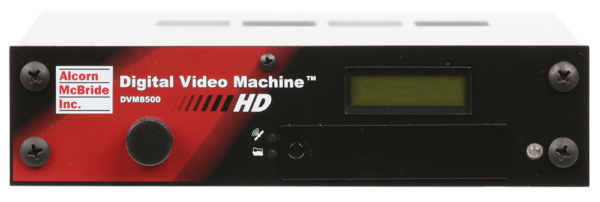

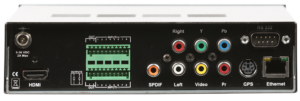

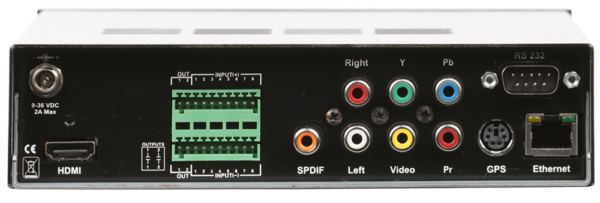

DVM8500	HD/SD Video Player /w HDMI, Component (YPbPr), Composite

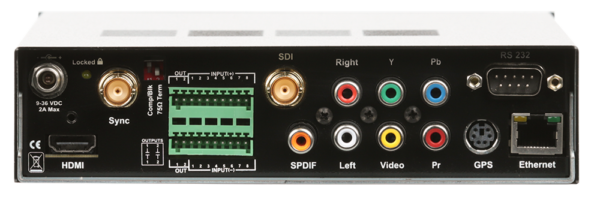

DVM8500-SYSD	HD/SD Video Player /w HDMI, Component (YPbPr), Composite, SDI Output (3G/HD/SD), and Genlock
VIDEO
Formats	MPEG-2 MP@HL H.264 (MPEG-4 part 10) MP & HP Level 4.1
Max Bit Rates	40 Mbps
Media	CompactFlash
Playback Time	About 8 minutes per GB at 15Mbps
Resolutions	1080p, 1080i, 720p, 576p, 576i, 480p, 480i
Digital Video	HDMI 3G HD-SDI (SMPTE-424M) with embedded audio
Analog Video	YPbPr or RGsB (1080i, 720p, 576p, 576i, 480p, 480i)
Video Sync In	Composite or black burst, BNC
AUDIO
Formats*	Encoded with Video: MPEG-1 Layer I/II, MPEG-2 Layer II MPEG-2 AAC, MPEG-4 AAC LC2-Channel Dolby® Digital EX(Bitstream), Pro Logic® II Standalone Audio: .mp3 .wav
Channels	2 or 5.1 (Dolby Digital® Bitstream) via Coax or HDMI
Signal-to-Noise Ratio	104 dB
Sample Rate	44.1 KHz, 48 KHz, 16 bit
Analog Audio	Unbalanced dual RCA phono connectors
Digital Audio	IEC958/IEC1937 (S/PDIF) RCA phono connector HDMI (2 Channel or 5.1 Bitstream) HD-SDI Embedded Audio (2 Channel)
MPEG technology licensed from MPEG-LA. Multi-channel audio formats are multiplexed as part of the audio/video bitstream, and are also output as a digital bitstream that requires an external decoder for conversion to analog signals. *Specifications subject to change without notice. Dolby® is a registered trademark of Dolby Laboratories.
CONTROL
Display	2×16 character LCD status display
User Control	Rotary Encoder with Push to Select
Status LEDs	Dual-color status LED, Yellow Video Sync LED
Serial	RS-232 @ 9600 N,8,1
Inputs	8 Programmable Contact/Voltage Triggers, Phoenix connector
Output	2 Programmable dry relay contacts
GPS	NMEA 0183 compliant input
Real-Time Clock	Battery backed-up may be locked to a network NTP server
Network	100BT RJ-45, UDP, NTP, FTP
PHYSICAL
Power	9 VDC at 36 VDC at 1.5 Amps max, AC Adapter included
Size	7.1”W x 1.75”H x 11”D (180mm x 44mm x 280mm)
Weight	4 lbs. (1.8 Kg)
Environment	0°C (32°F) to 38°C (100°F)
	0-90% Relative Humidity
Mounting	SMK – Surface Mount Kit
	VSMKX-1 – Single Unit Surface Mount Kit with Vibration Dampening
	VSMKX-2 – Dual Unit Surface Mount Kit with Vibration Dampening
	RMK-1 – Single Unit Rack Mount Kit
	RMK-2 – Dual Unit Rack Mount Kit
Compliance	CE, UL, CSA, WEEE, RoHS

DOCUMENTS
	Digital Video Machine HD (DVM8500) Cut Sheet	Cut Sheet
	Digital Video Machine HD (DVM8500) User’s Guide	User’s Guide
MECHANICAL
	Digital Video Machine HD (DVM-8500) 3D Model (STEP)	Model

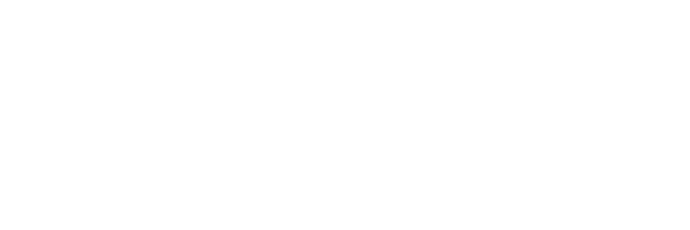

	Digital Video Machine HD (DVM-8500) Mechanical Drawings (PDF)	Drawings
	Digital Video Machine HD (DVM-8500) Mechanical Drawings (DWG)	Drawings
SOFTWARE

Application	Description	Download

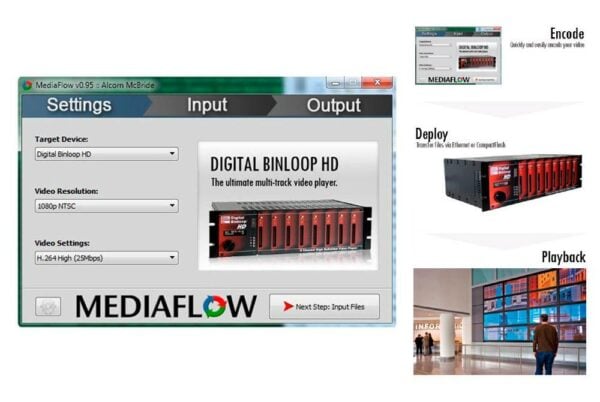

MediaFlow	Video encoding tool used to prepare content for video playback products
AMI Terminal	Serial/Ethernet control utility for Windows
GPS Builder	GPS playlist utility for GPS-enabled media playback products
Playlist Builder	Playlist creation utility for media playback products
Schedule Builder	Schedule creation utility for media playback products equipped with real-time scheduler

FIRMWARE

Product	Description	Download
DVM8500	Firmware for DVM8500 media player

MOUNTING KITS

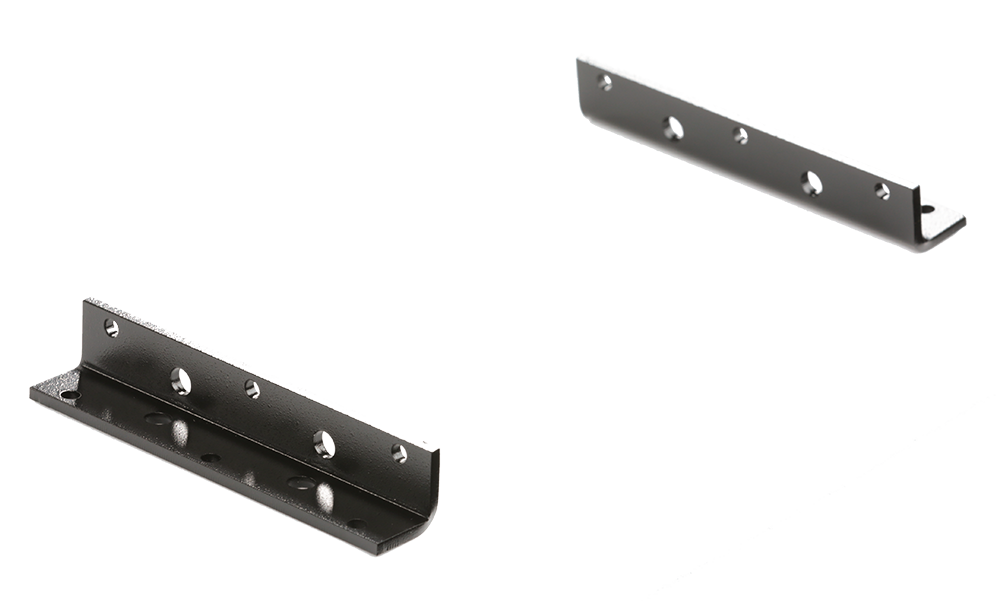

SMK	Surface Mount Kit

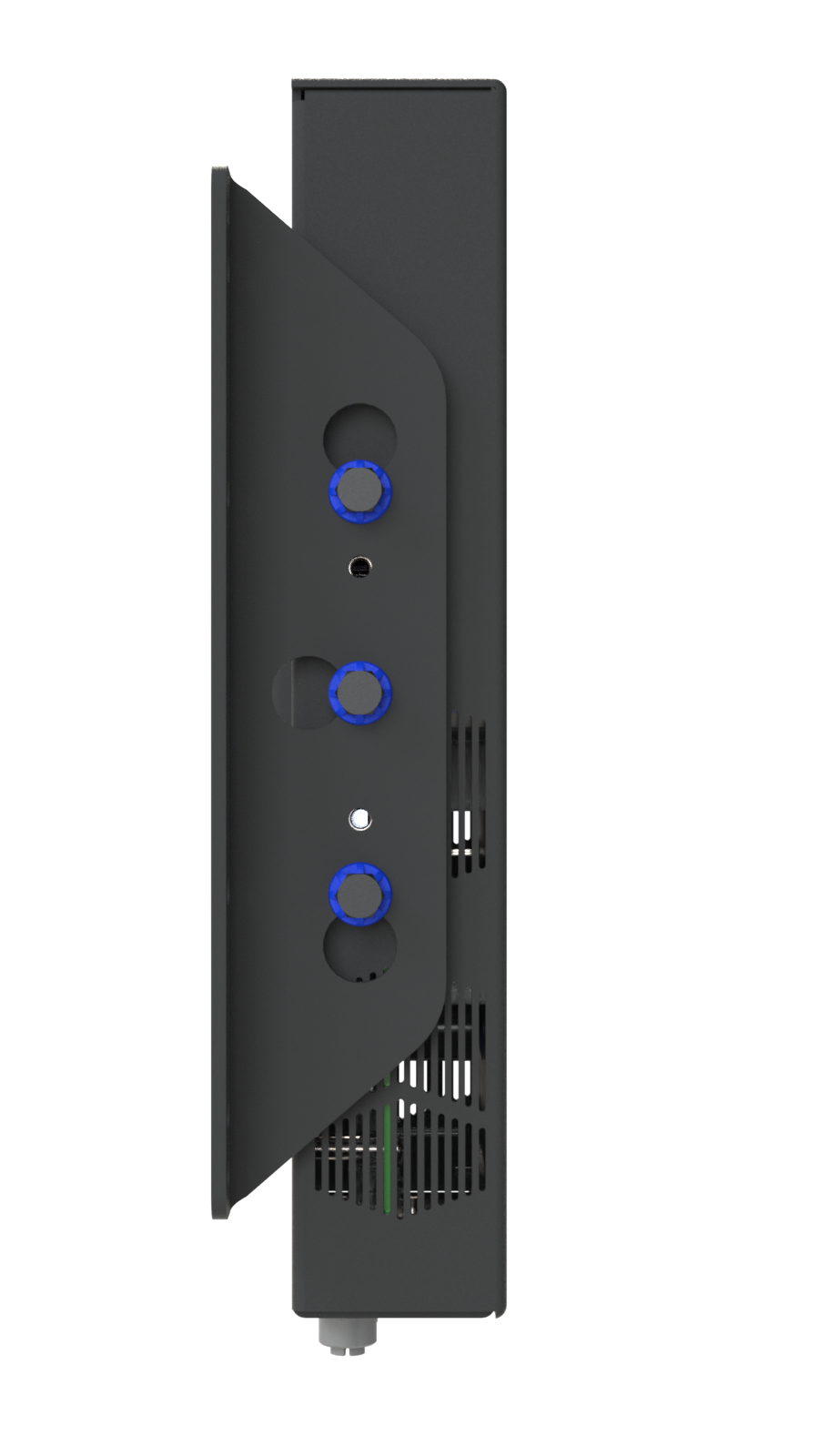

VSMKX-1	Single Unit Surface Mount Kit with Vibration Dampening

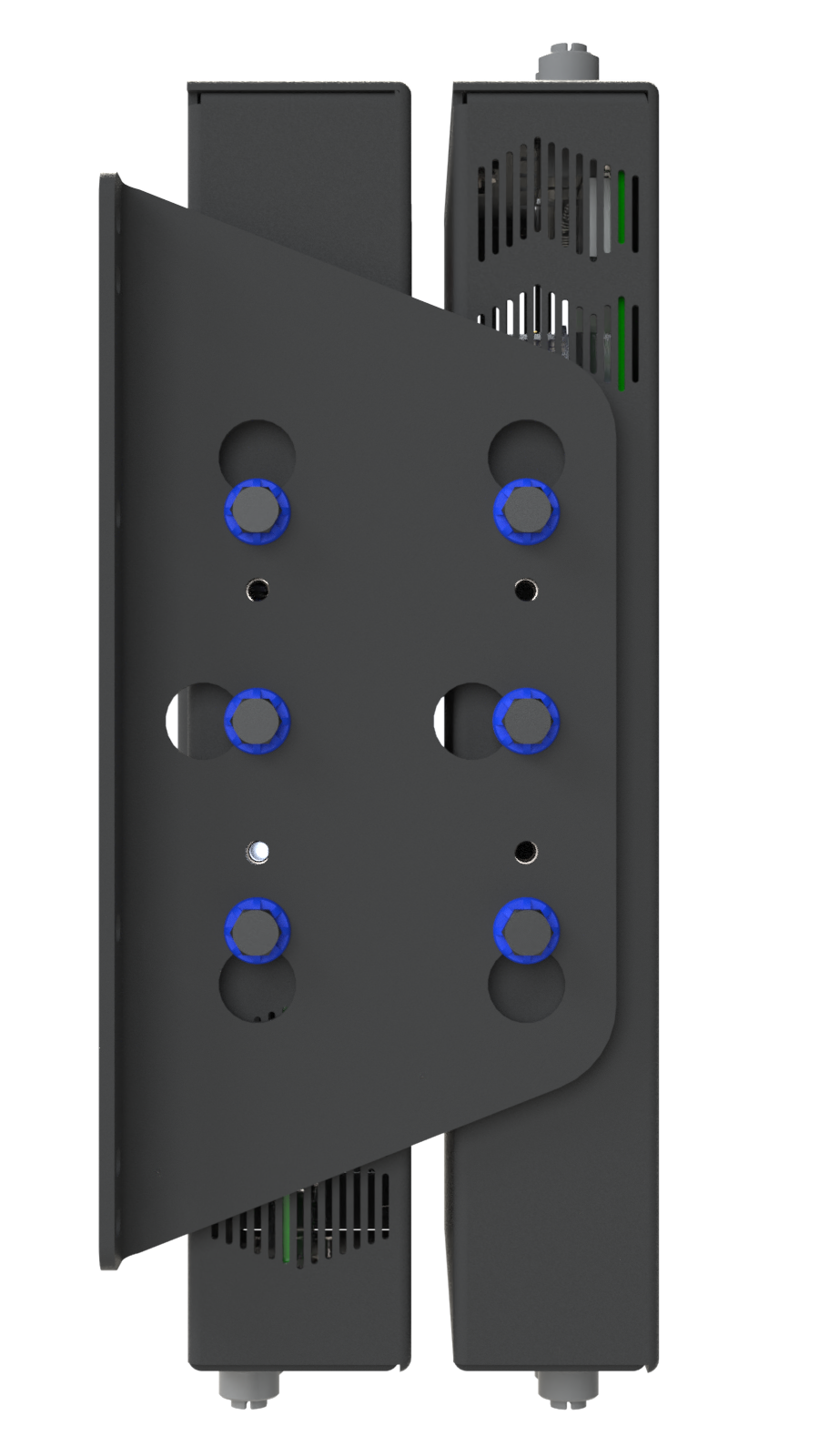

VSMKX-2	Dual Unit Surface Mount Kit with Vibration Dampening
RMK-1	Single Unit Rack Mount Kit

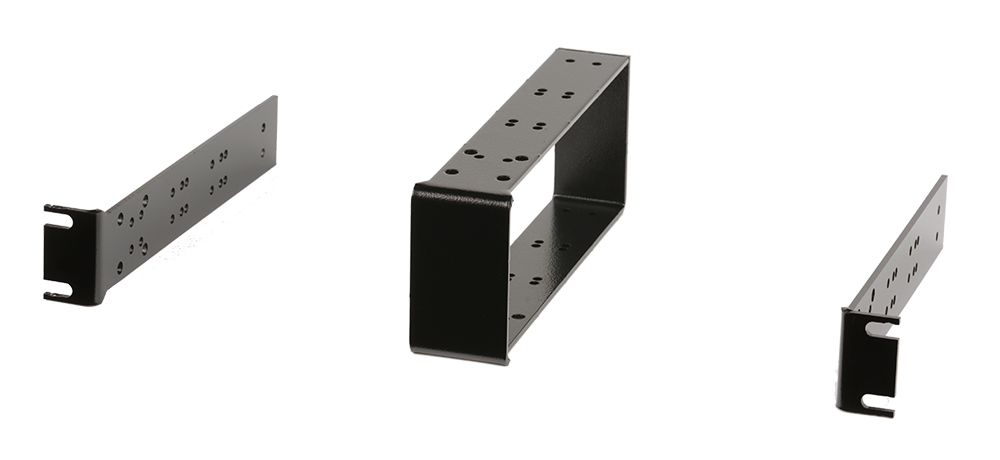

RMK-2	Dual Unit Rack Mount Kit
STORAGE MEDIA

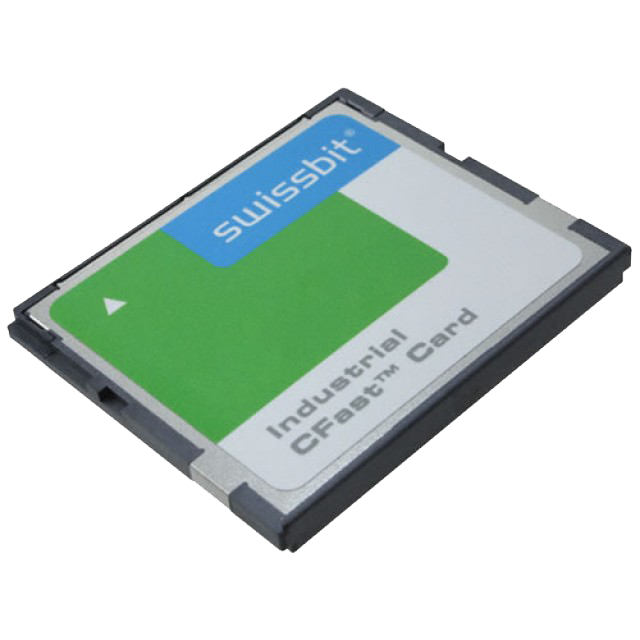

CF16GB	16GB CompactFlash Card
CF32GB	32GB CompactFlash Card
CF64GB	64GB CompactFlash Card
CABLES AND ADAPTERS

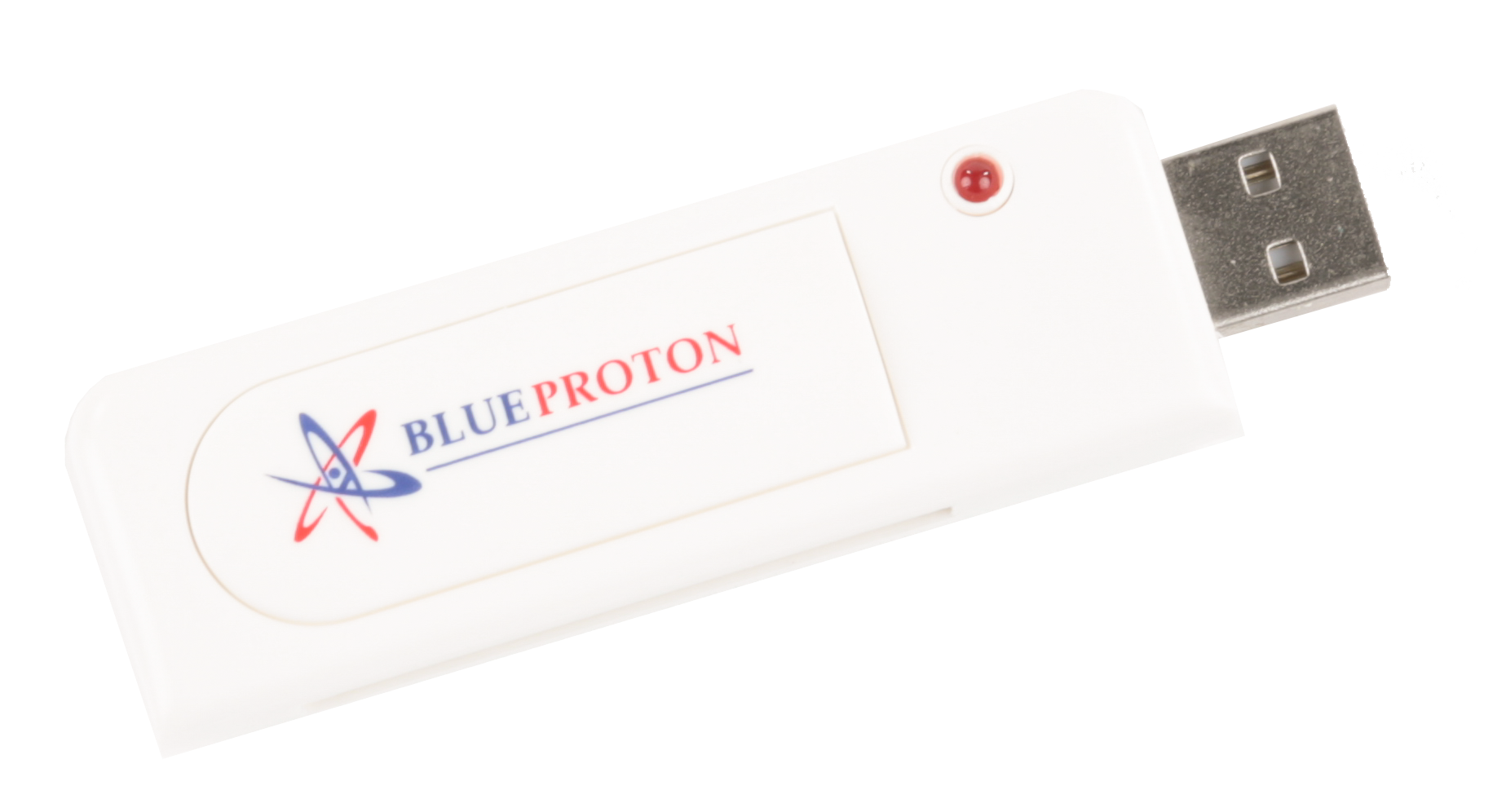

CFAUSB	CompactFlash Adapter for USB Port

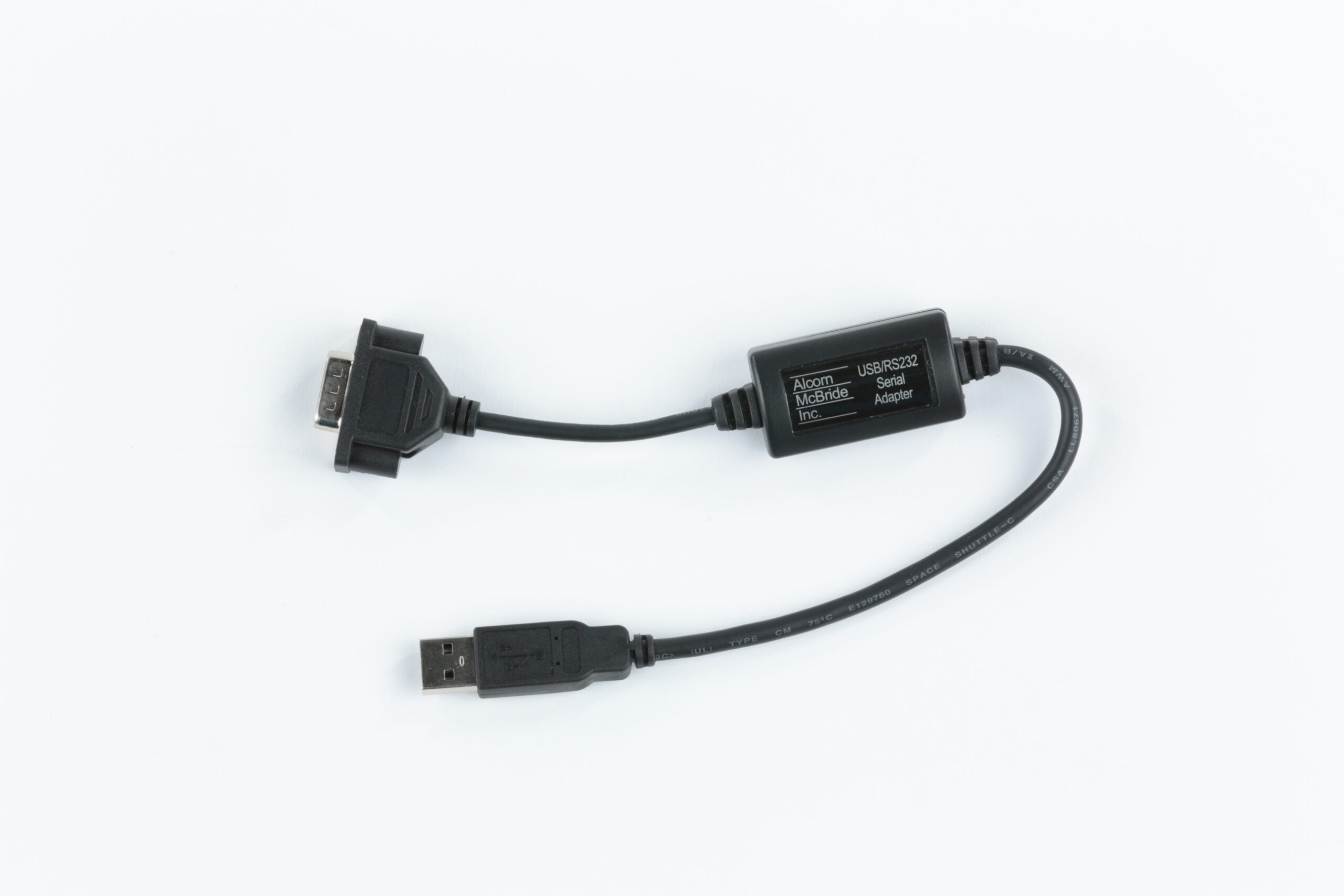

USBSER	USB to RS232 Serial Adapter for Computer
GPS-MMANT	Magnetic Mount GPS Antenna

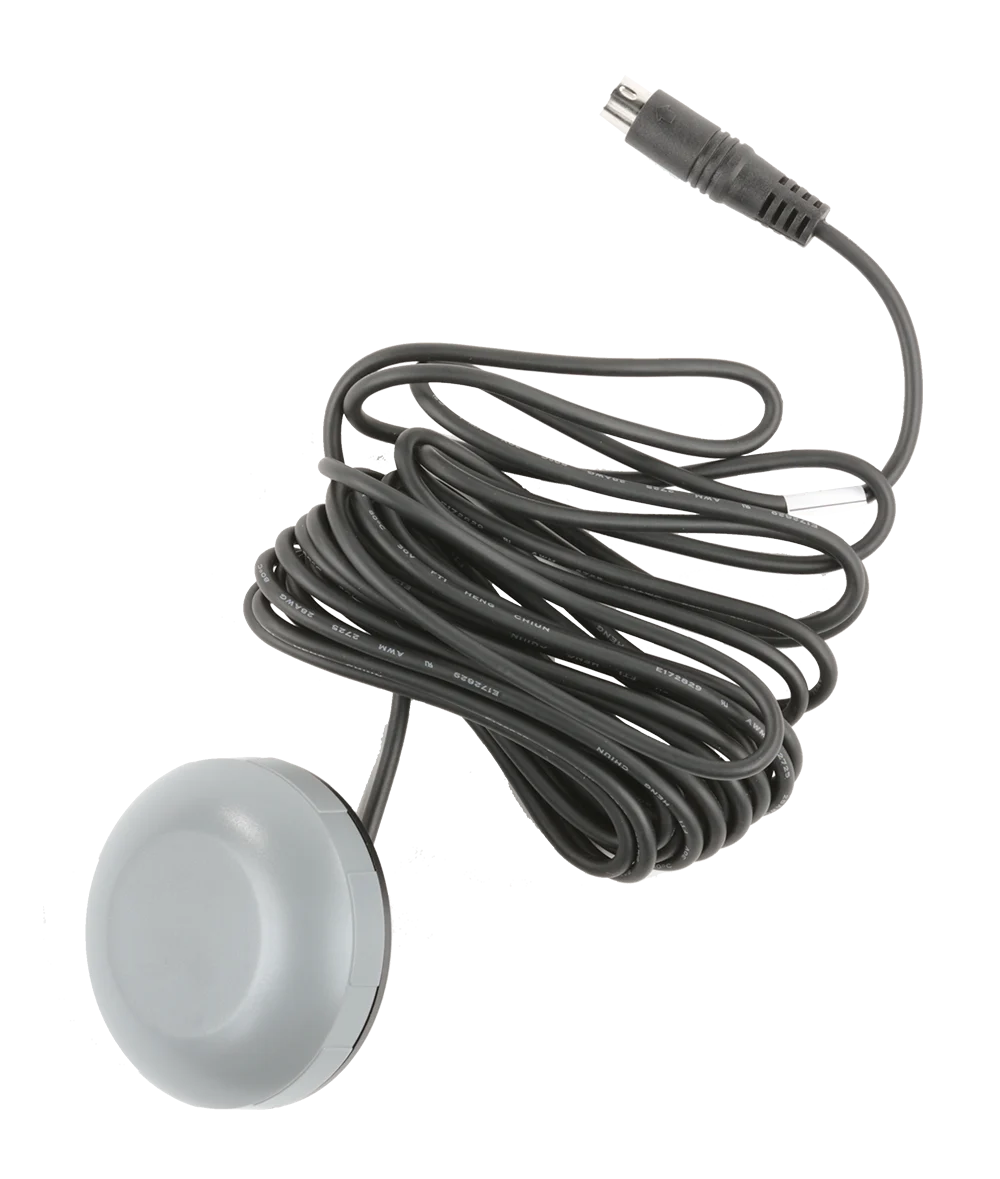

GPS-BHANT	Bulkhead Mount GPS Antenna

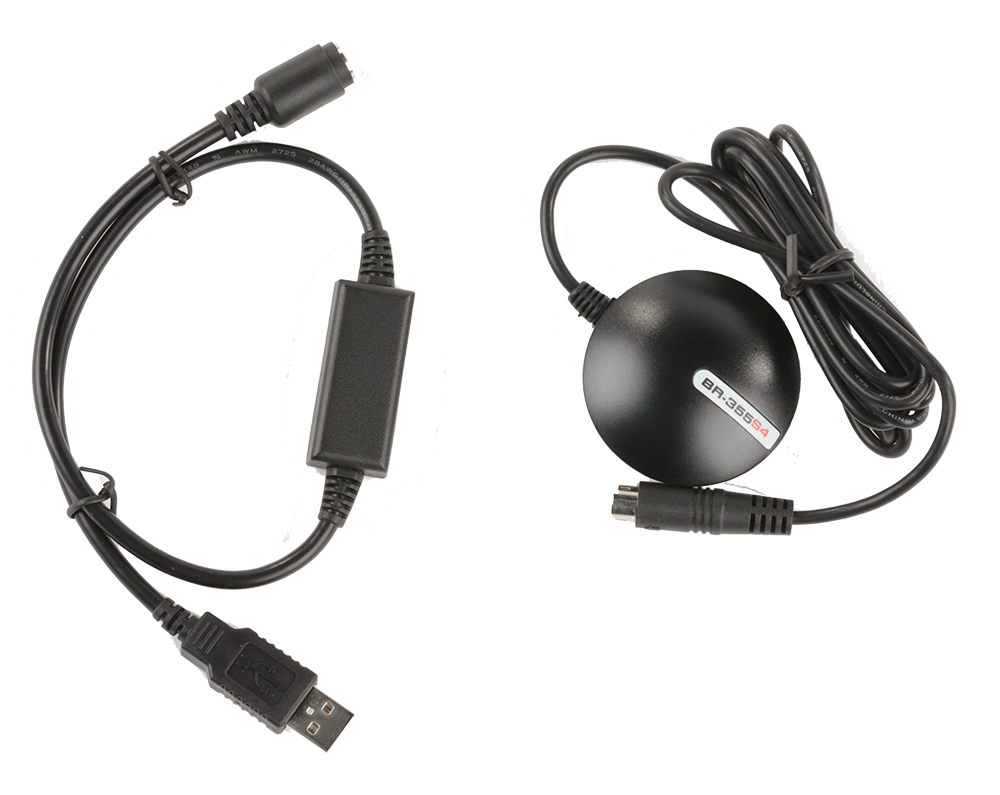

DEVKIT-GPS	GPS Development Kit – Includes Magnetic Mount GPS Antenna with USB Adapter

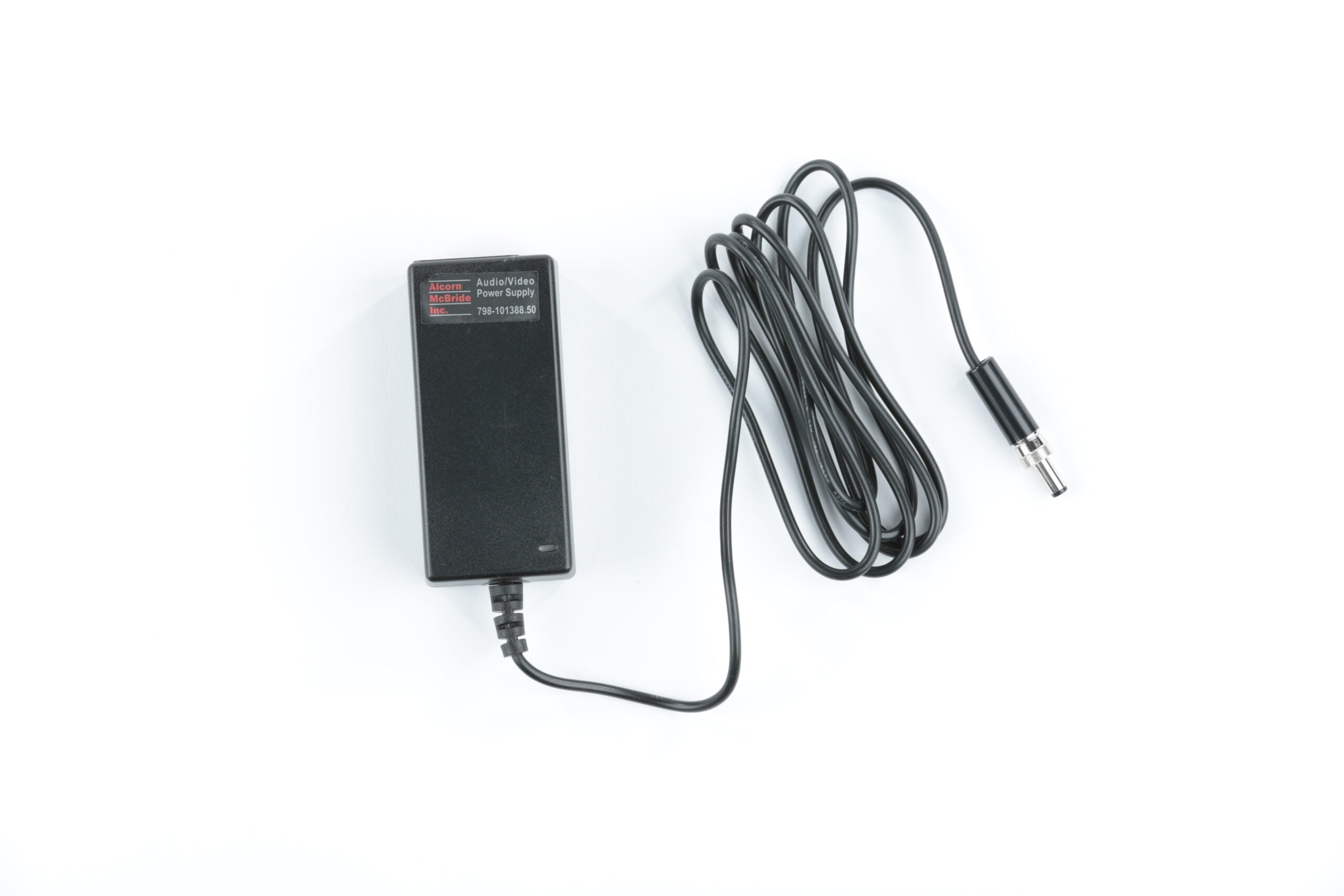

PS12VU	Spare Universal Power Supply 12V
SOFTWARE
MediaFlow MPEG2	Encoding Software for Alcorn McBride Media Players (MPEG2 License)
MediaFlow H264	Encoding Software for Alcorn McBride Media Players (H264 License)
MediaFlow H264/MPEG2	Encoding Software for Alcorn McBride Media Players (H264 + MPEG2 License)
MediaFlow USB Key	Floating USB License for MediaFlow (MediaFlow software license not included)
