4-Zone Intelligent Paging Station
We believe that paging solutions should be a breeze to install and intuitive to operate. That’s why we designed our V-Page family of products to leverage the flexibility of industry-standard DSP platforms like Q-SYS and provide a simple button-based UI that just makes sense.

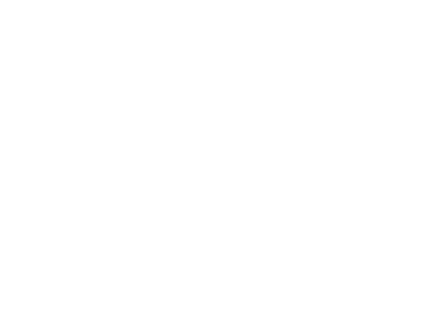

The VP4X station is an off-the-shelf 4-zone paging station that’s designed to fit in a standard 4-gang box. A single Ethernet cable provides Dante/AES67 network audio, power (PoE), and control between each V-Page station and the equipment room where the DSP is located. It even supports SFP network modules for applications that require a long run back to the equipment room.
PART NUMBER |
|
---|---|
VPAGE-VP4X | V-Page 4-zone intelligent paging station /w EV US600EL Microphone |
CONTROL |
|
Controls | 4 Pushbuttons /w Integrated LEDs Microphone Gain |
LED Indicators | 4 Green/Red Bi-color LEDs |
Config Switches |
Link Firmware Update/Factory Defaults |
Network Connectors | Female RJ-45 SFP |
Protocols | UDP, TCP, HTTP, Dante, AES67 |
AUDIO |
|
Microphone Connector | Female 5-Pin XLR |
Microphone Type | EV US600EL (Included) Supports Balanced & Dynamic Mics |
THD+N | <0.07% |
Signal-to-Noise Ratio | >85 dB |
Input Impedance | >30Mohm |
Frequency Response | 20-20kHz +/- 1% |
Network Audio Interface | 0x1 Dante 0x1 AES67 |
DSP Compatibility | Q-SYS Core 110f (AES67 Only) Q-SYS Core 250i (AES67 or Dante via CDN64 I/O Card) Q-SYS Core 500i (AES67 or Dante via CDN64 I/O Card) Q-SYS Core 510i (AES67 or Dante via CDN64 I/O Card) Q-SYS Core 1100 (AES67 or Dante via CDN64 I/O Card) Q-SYS Core 3100 (AES67 or Dante via CDN64 I/O Card) Q-SYS Core 5200 (AES67 Only) |
PHYSICAL |
|
Power (PoE) | PoE Class 3 RJ45 |
Power (DC) | 5-37VDC @ 1A Max Phoenix Screw Terminal Block 1844210 |
Dimensions |
8″W x 4.5″H x 2″D (204mm x 114mm x 51mm) |
Weight | 1.5lb (.7kg) |
Environment | 0°C (32°F) to 38°C (100°F) 0-90% Relative Humidity |
Compliance | WEEE, RoHS |
DOCUMENTS |
||
---|---|---|
V-Page VP4X Cut Sheet | Cut Sheet | |
V-Page VP4X User’s Guide | Manual | |
V-Page VP4X Label Template |
Template | |
MECHANICAL |
||
V-Page VP4X Mechanical 3D Model (STEP) | Model | |
V-Page VP4X 2D Drawing (PDF) | Drawing | |
V-Page VP4X 2D Drawing (DWG) | Drawing | |
SOFTWARE |
Product | Description | Download |
---|---|---|
V-Page + V-Com Utilites | Configuration and Test Utility for V-Page and V-Com units |
FIRMWARE & PLUGIN |
---|
If you’re using an older version of Q-Sys, be sure to download a release that is compatible with that platform:
|
Product | Description | Download |
---|---|---|
V-Page | Firmware and Plugin for V-Page stations |
MOUNTING |
|
---|---|

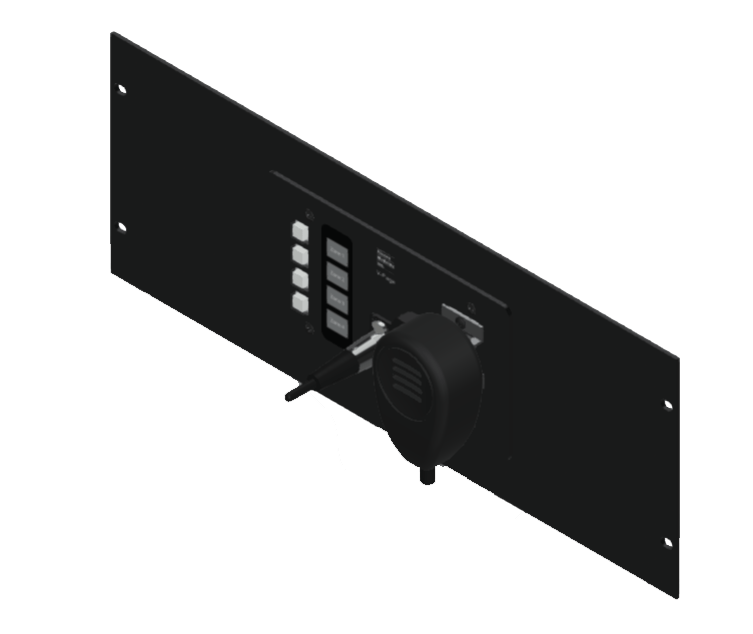

RM-VP4 | 4U Rack-mount kit for VP4X |

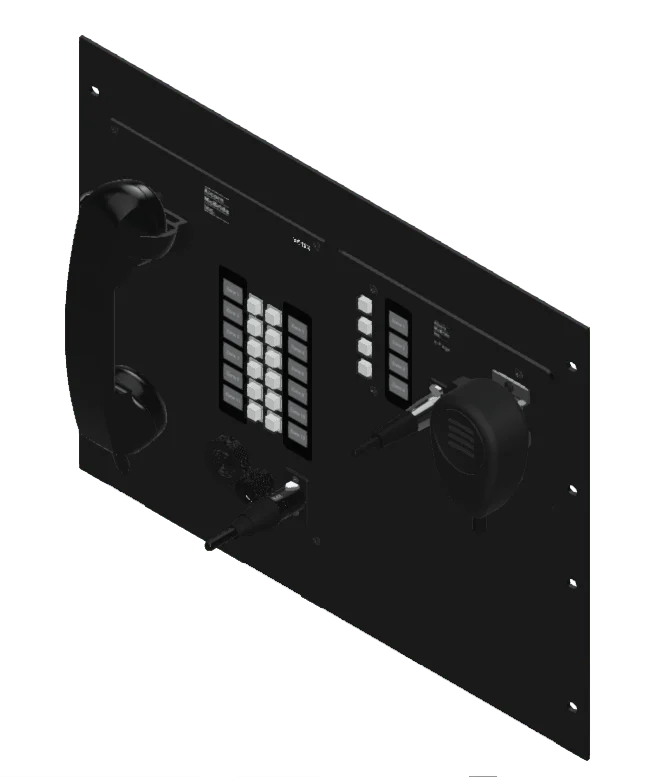

RM-VP4VC12 | 8U Rack-mount kit for VP4X and VC12X (side-by-side) |
PARTS |
|

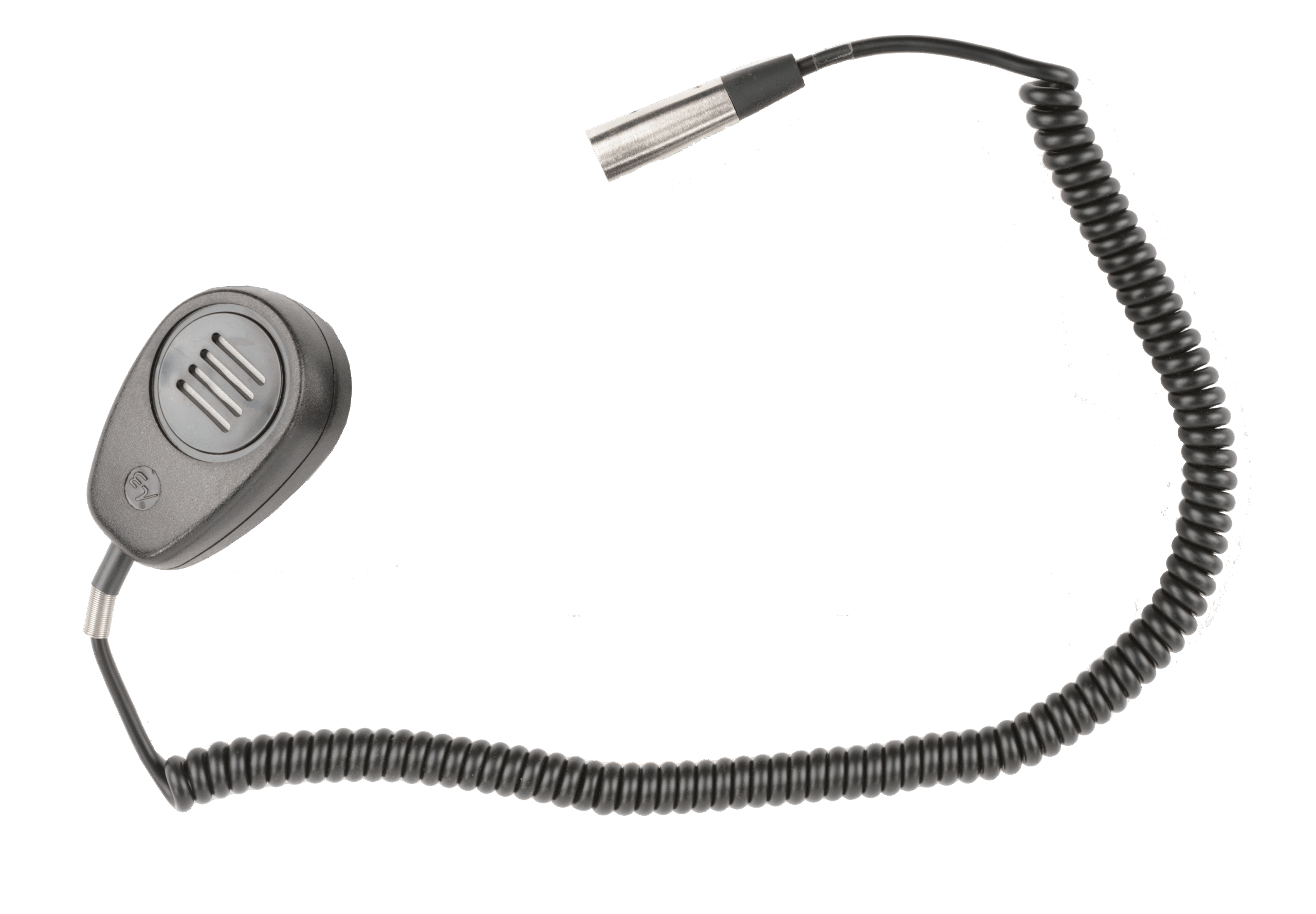

MIC-US600EL | Electro Voice US600EL Microphone /w 5-pin XLR Connector |
