Intelligent Intercom Station
We believe that intercom solutions should be a breeze to install and intuitive to operate. Just like our popular V-Page product line, we’ve designed our V-Com solutions to leverage industry-standard DSP platforms like Q-SYS while providing a simple button-based UI that just makes sense.

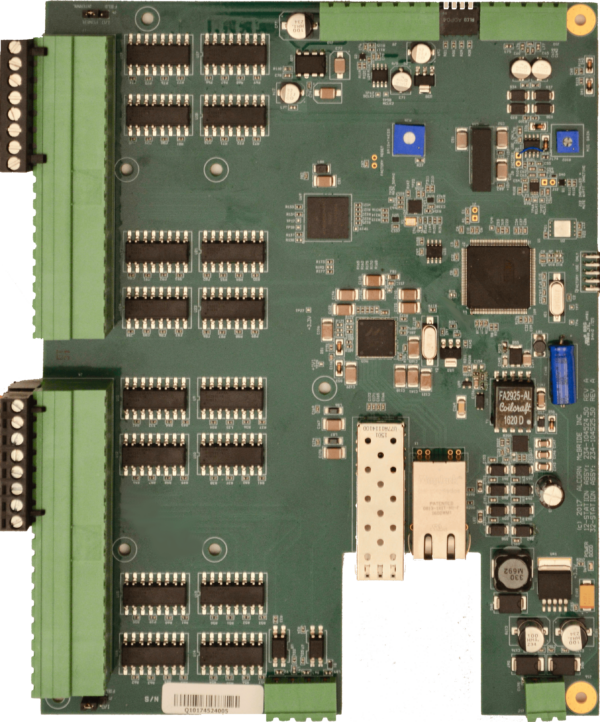

The V-Com VC32K is an intercom station kit that enables you to create customized intercom consoles with up to 32-zones of ring control. This kit is designed to mount on a standard DIN rail inside the console and comes with a handset, handset hook, ringer, panel-mount XLR harness, and earpiece volume knob.
A single Ethernet cable provides network audio (Dante or AES67), power (PoE), and control between each V-Com station and the DSP device. It even supports SFP network modules for applications that require the station to be far away from the equipment room.
PRODUCT INFORMATION |
|
---|---|
Product | V-Com VC32K |
PART NUMBER |
|
VCOM-VC32K | V-Com 32-Zone Intelligent Intercom station kit /w handset |
CONTROL |
|
Controls | 32 Contact-Closure Inputs Receiver Volume |
Indicators | 32 Lamp Driver Outputs |
Config Switches | Link Firmware Update/Factory Defaults |
Ethernet Connector | Female RJ-45 |
Protocols | UDP, TCP, HTTP |
AUDIO |
|
Handset Connector |
Phoenix Screw Terminal 1844249 Panel-Mount Female 4-Pin XLR Harness (Included) |
THD+noise | Less than 0.07% |
Signal-to-Noise Ratio | Greater than 85 dB |
Input Impedance | Greater than 30Mohm |
Frequency Response | 20-20kHz +/- 1% |
Network Audio Interface | 1×1 Dante 1×1 AES67 |
DSP Compatibility | Q-SYS Core 110f (AES67 Only) Q-SYS Core 250i (AES67 or Dante via CDN64 I/O Card) Q-SYS Core 500i (AES67 or Dante via CDN64 I/O Card) Q-SYS Core 510i (AES67 or Dante via CDN64 I/O Card) Q-SYS Core 1100 (AES67 or Dante via CDN64 I/O Card) Q-SYS Core 3100 (AES67 or Dante via CDN64 I/O Card) Q-SYS Core 5200 (AES67 Only) |
PHYSICAL |
|
Power (DC) | 5-37VDC @ 1A Max Phoenix Screw Terminal Block 1844210 |
Power (PoE) | PoE Class 3 RJ45 |
Dimensions | 8″W x 10″H x 2″D (200mm x 114mm x 51mm) |
Weight | 1.5lb (.7kg) |
Environment | 0° to 38°C (32° to 100°F) Phoenix Screw Terminal Block 1844249 |
Compliance | WEEE, RoHS |
DOCUMENTS |
||
---|---|---|
V-Com User’s Guide | User’s Guide | |
MECHANICAL |
||
VC32K Mechanical 3D drawing | Model | |
SOFTWARE |
Product | Description | Download |
---|---|---|
V-Page + V-Com Utilites | Configuration and Test Utility for V-Page and V-Com units |
FIRMWARE |
---|
If you’re using an older version of Q-Sys, be sure to download a release that is compatible with that platform:
|
Product | Description | Download |
---|---|---|
V-Com | Firmware and Q-Sys plugins for V-Com stations |
PART NUMBER |
DESCRIPTION |
---|---|
HANDSET-VC | Replacement Handset for V-Com Intercom Station |
DIN-19 | 19″ DIN Rail |
