32-Zone Intelligent Paging Station Kit
We believe that paging solutions should be a breeze to install and intuitive to operate. That’s why we designed our V-Page family of products to leverage the flexibility of industry-standard DSP platforms like Q-SYS and provide a simple button-based UI that just makes sense.

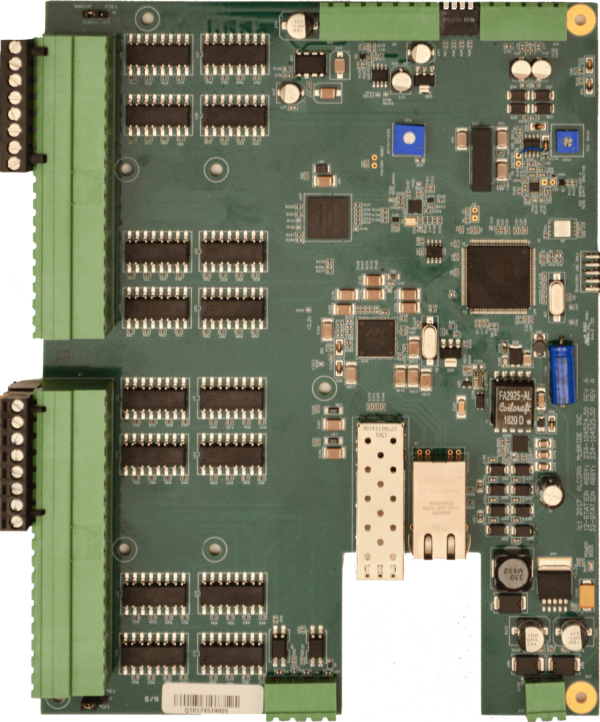

The VP32K is a paging station kit that allows you to create customized paging consoles with up to 32-zones of control. This kit is designed to mount on a standard DIN rail inside the console and comes with a microphone, microphone clip, and panel-mount XLR harness.
A single Ethernet cable provides Dante/AES67 network audio, power (PoE), and control between each V-Page station and the equipment room where the DSP is located. It even supports SFP network modules for applications that require a long run back to the equipment room.
PRODUCT INFORMATION |
|
---|---|
Product | V-Page VP32K |
PART NUMBER |
|
VPAGE-VP32K | V-Page 32-zone intelligent paging station kit (Microphone not included) |
CONTROL |
|
Controls | 32 Contact-Closure Inputs Microphone Gain |
Indicators | 32 Lamp Driver Outputs |
Config Switches | Link Firmware Update/Factory Defaults |
Ethernet Connector | Female RJ-45 SFP |
Protocols | UDP, TCP, HTTP, Dante, AES67 |
AUDIO |
|
Microphone Connector |
Phoenix Screw Terminal Block 1844249 Panel-Mount Female 5-Pin XLR Harness (Included) |
Microphone Type | Balanced or Dynamic Microphone (Not Included) |
THD+noise | Less than 0.07% |
Signal-to-Noise Ratio | Greater than 85 dB |
Network Audio Interface | 0x1 Dante 0x1 AES67 |
Input Impedance | Greater than 30Mohm |
Frequency Response | 20-20kHz +/- 1% |
Network Audio Interface | 0x1 Dante 0x1 AES67 |
DSP Compatibility | Q-SYS Core 110f (AES67 Only) Q-SYS Core 250i (AES67 or Dante via CDN64 I/O Card) Q-SYS Core 500i (AES67 or Dante via CDN64 I/O Card) Q-SYS Core 510i (AES67 or Dante via CDN64 I/O Card) Q-SYS Core 1100 (AES67 or Dante via CDN64 I/O Card) Q-SYS Core 3100 (AES67 or Dante via CDN64 I/O Card) Q-SYS Core 5200 (AES67 Only) |
PHYSICAL |
|
Power (DC) | 5-37VDC @ 1A Max Phoenix Screw Terminal Block 1844210 |
Power (PoE) | PoE Class 3 RJ45 |
Dimensions | 8″W x 10″H x 2″D (200mm x 254mm x 51mm) |
Weight | 1.5lb (.7kg) |
Environment | 0° to 38°C (32° to 100°F) 0-90% Relative Humidity |
Compliance | WEEE, RoHS |
DOCUMENTS |
||
---|---|---|
V-Page User’s Guide | User’s Guide | |
MECHANICAL |
||
Mechanical drawings of VP32K paging station kit | Model | |
SOFTWARE |
Product | Description | Download |
---|---|---|
V-Page + V-Com Utilites | Configuration and Test Utility for V-Page and V-Com units |
FIRMWARE |
---|
If you’re using an older version of Q-Sys, be sure to download a release that is compatible with that platform:
|
Product | Description | Download |
---|---|---|
V-Page | Firmware and Plugin for V-Page stations |
PART NUMBER |
DESCRIPTION |
---|---|
MIC-US600EL | Electro-Voice US600EL Microphone /w 5-pin XLR Connector |
DIN-19 | 19″ DIN Rail |
