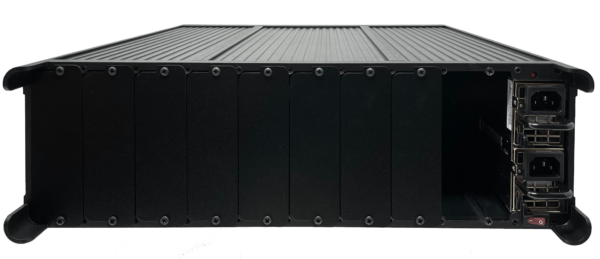

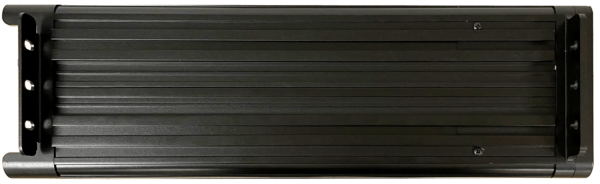

The BX-CAGE is a replacement chassis for the BinloopX which includes a power supply and LCD displays. The control and A/V slots are empty.
This replacement chassis is available to service failed or damaged BinloopX units in the field. It does not include the BX-CON1 controller module that comes standard with the BinloopX. This is offered as a separate accessory so that if you already have a BX-CON1 controller module and A/V modules, you can simply migrate them to this chassis.
This part should only be ordered for servicing existing units. If you wish to order a new BinloopX system, you should order our BINLOOPX product along with any additional A/V modules that you may require (i.e. BX-16A).
Please contact our sales and support team with any questions!
BinloopX Chassis /w Redundant Power Supply (No Control or A/V Modules)
BX-CON1 – Controller Module – 1 Ethernet, 1 Serial, 8 Inputs, Genlock, LTC, GPS, PTP/NTP
BX-16A – Audio Module – 16-Channel, 64-Track Polyphonic Playback, 16×16 Dante/AES67, DSP
110-240VAC Redundant Power Supply
150W Typ, 300W Max
19.3″W x 17.2″D x 5.2″H (490mm x 437mm x 131mm)
18 lbs (8.2 kg)
0°C (32°F) to 38°C (100°F)
0-90% Relative Humidity
3U 19″ Rack-Mount
UL, CE, CB, WEEE, RoHS
