Product Description

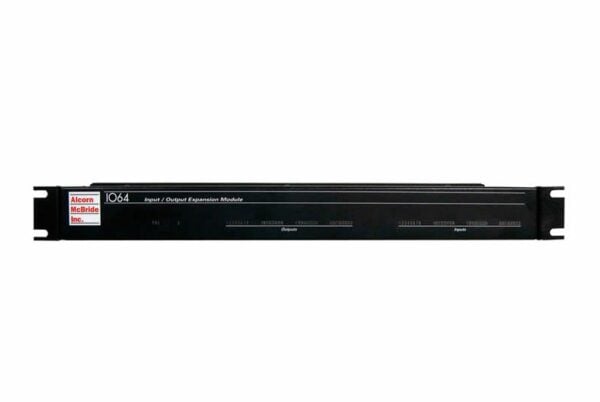

The IO64 is an input/output expander for our other products.
Anyone who’s owned a PC takes the occasional crash and reboot for granted. With show control that’s simply not an option. That’s why our products use special, highly reliable hardware, connectors, and our super-stable ScriptOS real-time operating system. Some Alcorn McBride show controllers have been powered up and operating continuously for twenty years without a reboot or power cycle. Try that with a PC!
The IO64 has one RS-232 serial port, brought out on an easy to use DB-9 connector. This port may be configured for MIDI. The IO64’s uses self-restoring polymer fuses on its 32 discrete outputs. Even a dead short in the field won’t harm them; they simply open the circuit until the problem is corrected, then almost miraculously heal themselves.
All inputs and outputs are brought to removable Phoenix-type terminal blocks, so it’s easy to swap without undoing a bunch of wires.
Control
Front Panel
Power LED
Acknowledge (ACK) LED
Error LED
2 Serial Activity LEDs
32 Input Status LEDs
32 Output Status LEDs
Rear Panel
Programming Port DB-9M
Serial Port DB-9M
MIDI Multiplexed Input/Output 5-pin DIN Female
Phoenix-type removeable terminal blocks for all 64 I/O points
Power 5-pin DIN Female
Serial Port
RS-232C
300 baud – 38.4 Kbaud
7, 8, or 9 Data Bits
1 or 2 Stop Bits
All parity types
Port may also be used for MIDI
Opto Inputs
24 VDC, 20 mA maximum
Reconfigurable for voltages down to 5 VDC
Trigger latency < 1 frame
Relay Outputs
Contact Closures limited internally to 900 mA
Self-restoring polymer fuses
Show Memory
32 Kbyte EEPROM stores approximately 5000 events
Nonvolatile, robust memory retains show data permanently
No battery backup required
Physical
Size
19″W x 5 “D x 1.75″H (48.25 cm W x 12.7 cm D x 4.5 cm H)
Weight
8 lbs. (3.5 Kg)
Operating Temperature
0°C (32°F) to 60°C (140°F), free air circulation
Operating Environment
0-90% relative humidity, non-condensing
AC Adapter
100 to 250 VAC, 50 to 60 Hz, 25W maximum
Power Supply Compliance
UL, CE, CSA, WEEE, RoHS
